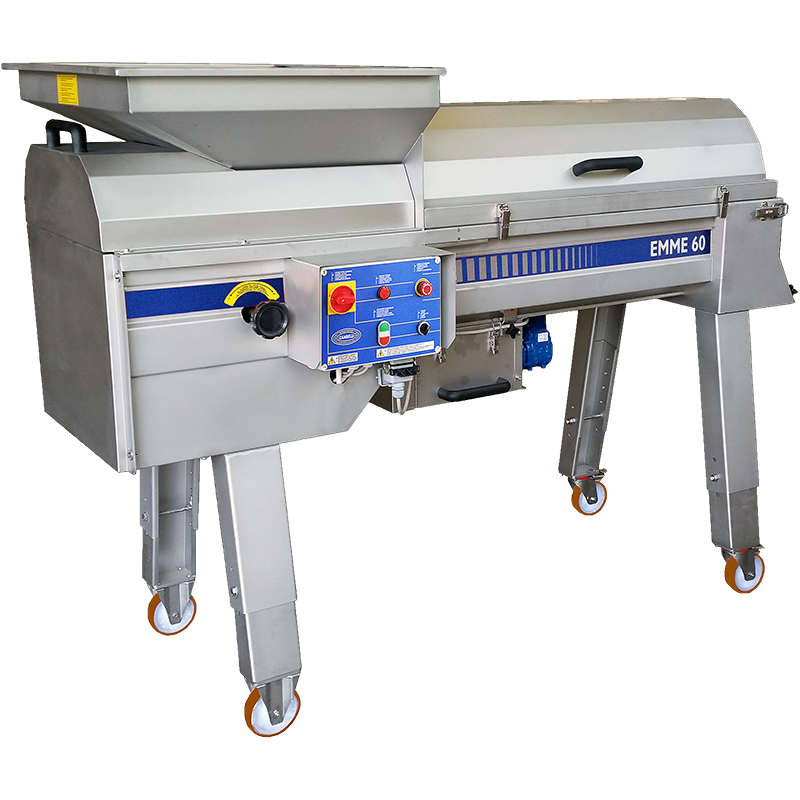

The Zambelli Emme 60 features a Wide-Load Hopper with a variable speed Feeding Auger, variable speed Destemming Drum and Shaft, removable Crushing Unit, motorized Must Collection Hopper with Auger, and is driven by a 220 volt, single-phase, 3 horsepower motor with variable frequency control capable of processing up to 6 - 8 tons of grapes per hour. The Variable Frequency Drive enables the speed of the Destemming Drum and Shaft to be adjusted and set on the fly using the on-board digital control panel. The speed of the In-Feed Auger can also be independently adjusted while in operation using the mechanical variable speed control.The Destemming Shaft is outfitted with rubber paddles that are adjustable in depth and angle. The destemmer contains a Clean In Place ("CIP") internal washing system, free-run juice ("first juice recovery") basin & drain, and height-adjustable legs.
The Emme 60 is equipped with a sliding Crushing Unit that can easily be removed to retrieve destemmed whole berries without crushing them. Housed within the Crushing Unit is a pair of rubber rollers that can be adjusted on the fly to provide the desired level of crushing. The Destemmer is also supplied with a wheeled Must Collection Hopper containing a motorized Central Auger to ensure that the destemmed grapes are continuously being fed to your transfer pump.
NEW Optional In-Feed Hopper Extension to accommodate dumping macro bins directly into the Destemmer.
Extension Opening Dimensions: 55" W x 36" D.
To see a video of the EMME features and operation CLICK HERE
DETAILS
The Emme 60 is equipped with a sliding Crushing Unit that can easily be removed to retrieve destemmed whole berries without crushing them. Housed within the Crushing Unit is a pair of rubber rollers that can be adjusted on the fly to provide the desired level of crushing. The Destemmer is also supplied with a wheeled Must Collection Hopper containing a motorized Central Auger to ensure that the destemmed grapes are continuously being fed to your transfer pump.
NEW Optional In-Feed Hopper Extension to accommodate dumping macro bins directly into the Destemmer.
Extension Opening Dimensions: 55" W x 36" D.
To see a video of the EMME features and operation CLICK HERE
DETAILS
- Hourly Production: up to 6 - 8 Tons
- Mechanical variable speed Feeding Auger
- Electronic variable speed Destemming Drum and Shaft
- On-board Frequency Inverter with digital control unit
- Adjustable Rubber Destemming Paddles
- Integrated CIP washing system (0.5" FNPT Inlet)
- Tool-free, quick-clip hinged cover for easy access and cleaning
- Tool-free, quick-clip Drum & Shaft assembly for easy removal and cleaning
- Sliding Crush/No Crush Unit on rails with adjustable rubber rollers
- Motorized Must Collection Hopper with Feeding Auger (3.0" Tri-Clamp outlet)
- Extendable Legs (8") with 2 fixed and 2 rotating casters (with brakes)
- AISI 304 Stainless Steel construction
- Destemmer & Crusher Motors: 3.8kW, 220v 1 PH, 16.9A
- Must Hopper Motor: 0.55kW, 220v 1 PH, 4.2A
- Dimensions: 76" L x 33" W x 56 - 62" H, 750 lbs
- Clearance beneath Crush Unit (w/o Must Hopper): 23 - 31"
- Made in Italy
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will contact you with actual shipping and/or crating costs prior to finalizing order.
This item is not crated for shipping when imported to the U.S. from the manufacturer. Accordingly, they may be received with very minor scratches, not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in new working order.
