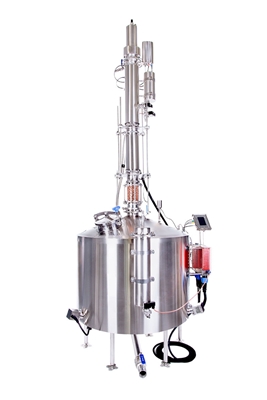

G250 Automated Still (250 Liter)
click on thumbnail to zoom

G250 Automated Still (250 Liter)

Price: make selection(s)
  • Item #SSG-250

Botanical Basket

- +
Other products by Genio
Genio stills are ideal for the production of high alcohol content spirits such as vodkas, as well as rich tasting and aromatic gins, rums, whiskies and brandies. In comparison to the more traditional manually operated column plate stills, the performance of GENIO stills is unapproachable in terms of efficiency, speed, size, product purity, and ease of operation. The procedure for operating the Genio still consists of:
  • Pouring the wash into the boiler
  • Connecting the cooling water input and output
  • Turning on the power
  • Placing collection vessels next to the still
  • Setting the desired distillation parameters via touch-screen control panel
  • Pushing "START"
Through the state of the art distillation column design and computer controlled needle valve, Genio series stills are able to achieve distillates in excess of 95% ABV from first to last drop, with minimal transfer of flavour and aromatic properties, in order to produce pure and clean tasting spirits ideal for production of vodka or neutral spirit for subsequent production of gins. To obtain taste and aroma rich products such as Gins, Whiskies, Rums and Brandies, Genio stills have a Pot Still Distillation mode, which reduces the amount of reflux occurring in the relatively short column and hence minimizes the number of theoretical distillations. The operation of the still in the Simple Pot Still Distillation mode provides the operator with full manual control in order to hand craft their spirit using their intuition and expertise with minimal reliance on Genio's distilling intelligence.

TANK OPTIONS
*All Tanks are finished with a welded AISI 316 stainless steel cover (over the black insulation shown in the photos).
Direct Heat: Electric heating element(s) are placed directly in the batch. This type of heating is intended for batches without solids. The liquid poured into the tank must be clean and clarified.
Oil Jacket with Agitator: Oil-filled (electrically-heated) jacket welded to tank exterior and internal agitator allow the heating of batches with solids without the risk of scorching.

COLUMN OPTIONS

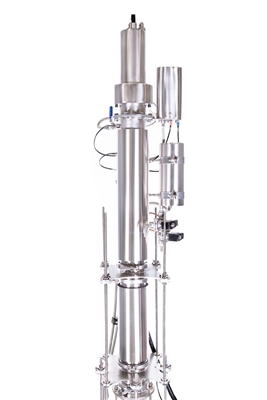

Rectification Column: For the production of clear, neutral, high-proof spirits up to 96.5% ABV, such as Vodka and Gin.
Stripping Column: For stripping runs in the production of spirits from liquids with solids (distillation on-the-grain), such as Whiskey, Rum, Grappa, etc.
Botanical Basket (OPTIONAL): Necessary for the introduction of botanical elements in Gin production. Can also be used to infuse other types of spirits.

DETAILS
  • Hourly Production: 16 Liters (4.2 gal)
  • Tank Capacity: 250 Liters (66 gal)

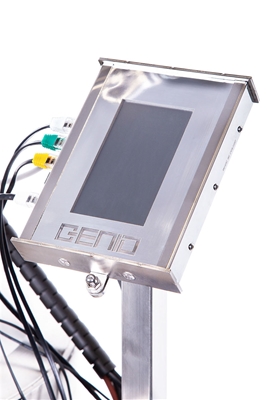

  • Intuitive touch-screen control unit

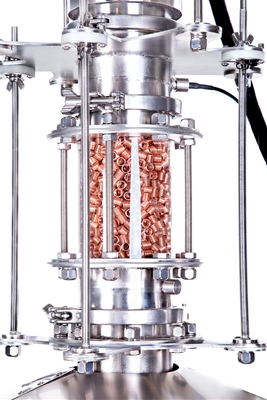

  • Ceramic Rasching Ring Packings (18-24 theoretical plates, 95% ABV) for rich, flavourful spirits- ideal for Pot Still Distillation mode
  • Stainless Steel Spiral Prismatic Packings (25-30 theoretical plates, 96.5% ABV) for pure, very clean distillate with minimal flavours and aromas
  • Direct Heat (liquid) or Oil Jacket (liquid & solids) tank heating option
  • Rectification Column (clear, neutral spirits) or Stripping Column (rich, aromatic spirits)
  • Botanical Basket (optional)
  • Dimensions: 49" L x 49" W x 114" H
  • Weight: 450 lbs
  • Power requirement: 208V or 240V and 85Amps
  • AISI 316 stainless steel construction
  • European Built by Genio
Price does not reflect cost of ocean or air transport from manufacturer.
We will call with transport options and costs prior to finalizing order.

*Installation and Set Up service available at additional cost
