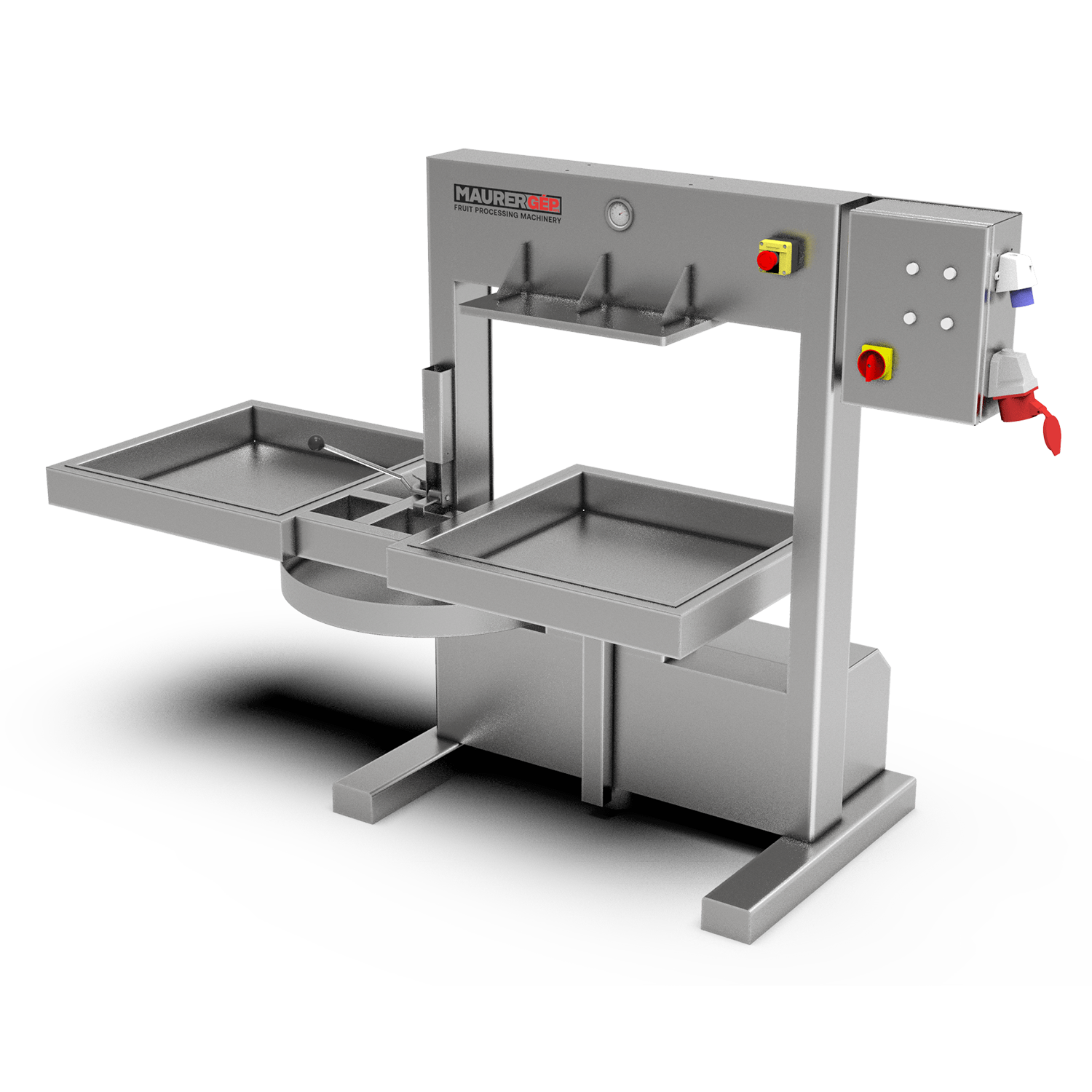

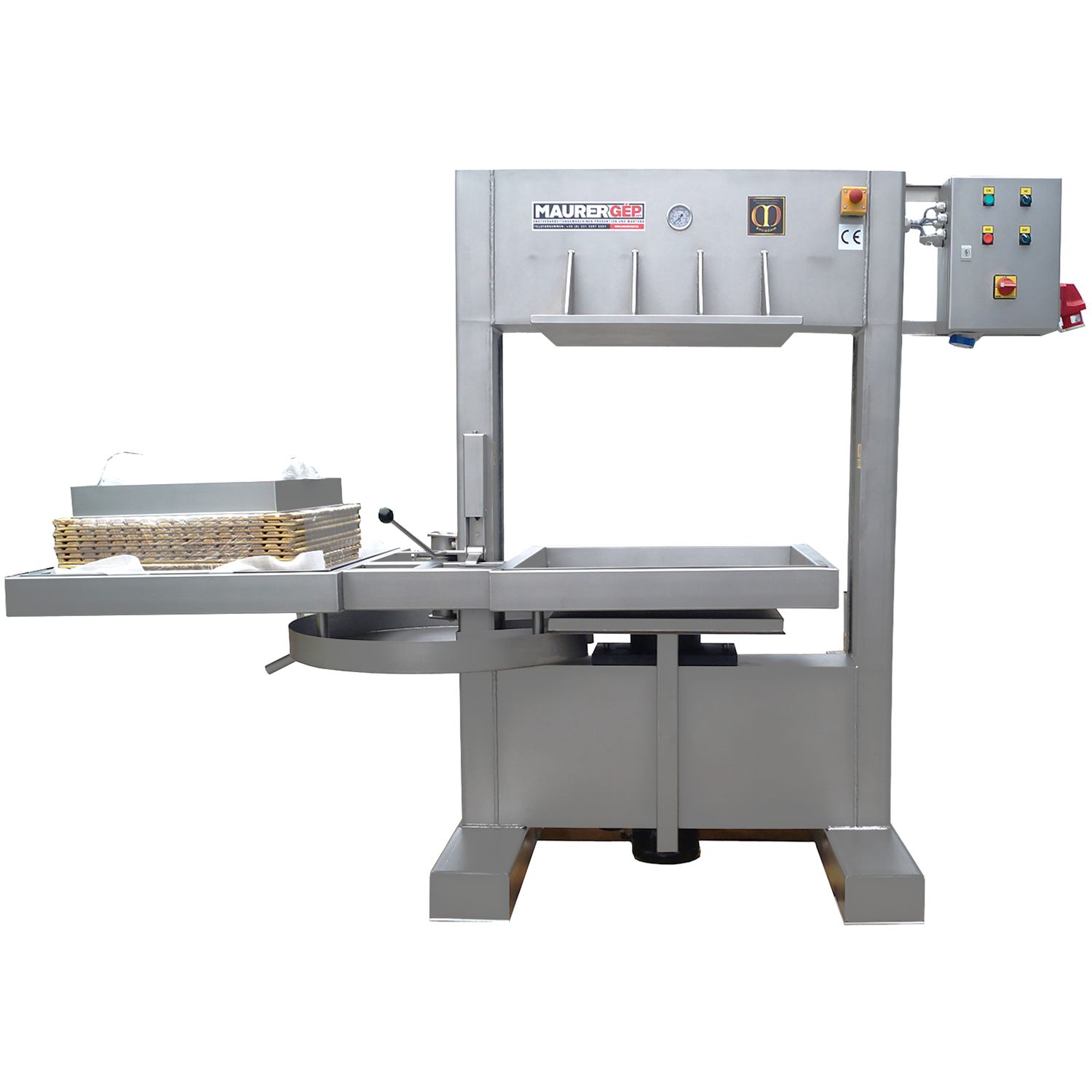

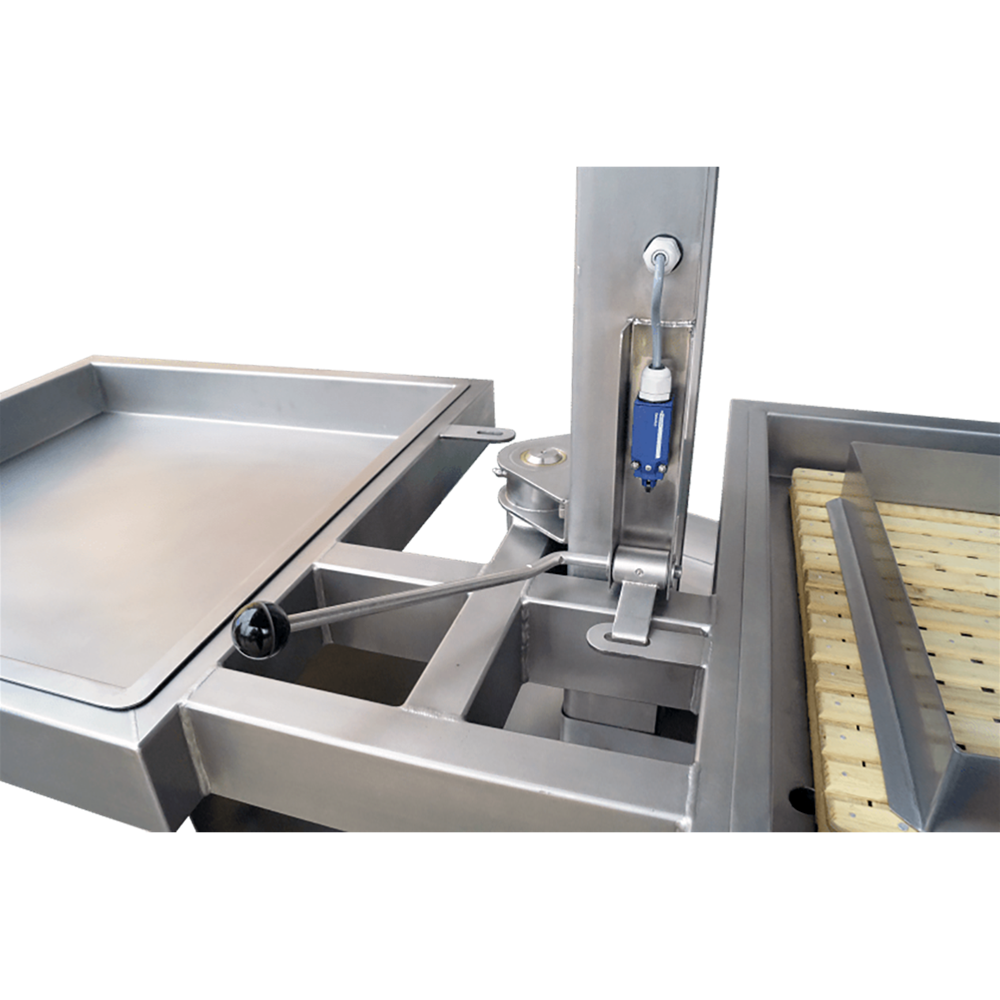

The Maurer MKP Rotary Carriage Packing Presses provide the highest yield to juice quality ratio. The rotating carriage allows for continuous operation, ideal for use with an elevator mill that will feed crushed / milled fruit directly to the packing press. Milled fruit is wrapped in straining cloth and packed between acacia wood inserts stacked inside the one of the two stainless steel press basins. Once the basin is packed and rotated into place, the hydraulic pressing cylinder, strategically located beneath the basin to prevent any oil from coming into contact with the mash or juice, raises the packed basin up to the wooden press plate, applying the optimal level of pressure for high-quality and high-yield juice extraction. Meanwhile the second draining basin is being filled and prepared for pressing.
DETAILS
- High yield (over 75%) with best juice quality
- Minimal suspension ratio
- Optimal for Apples, Pears and other soft fruits & vegetables
- Easy & simple to operate
- Bottom-mounted Press Cylinder prevents oil from coming into contact with mash or juice
- On-board Pressure Gauge with Automatic Over-Pressure stop valve
- Quick operation and juice extraction prevent oxidation
- Acacia Wood Inserts
- AISI 304 Stainless Steel Construction
- Made in Hungary by Maurer
| MKP 600 | MKP 1000 | |
| CAPACITY (PER HOUR): | 1350 lb (600 kg) | 2200 lb (1000 kg) |
| LOADING BASINS: | 2 | 2 |
| PRESS INSERTS: | 20 | 30 |
| PRESS CLOTHS: | 18 | 28 |
| POWER: | 3.2 HP, 1-Ph, 240v | 3.2 HP, 1-Ph, 240v |
| DESIGN: | AISI 304 Stainless-Steel | AISI 304 Stainless-Steel |
| TOTAL DIMEMSIONS Length: Width: Height: |
93 in (2380 mm) 32 in (800 mm) 60 in (1520 mm) |
106 in (2680 mm) 40 in (1000 mm) 75 in (1900 mm) |
| WEIGHT: | 1350 lb (450 kg) | 2295 lb (860 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
