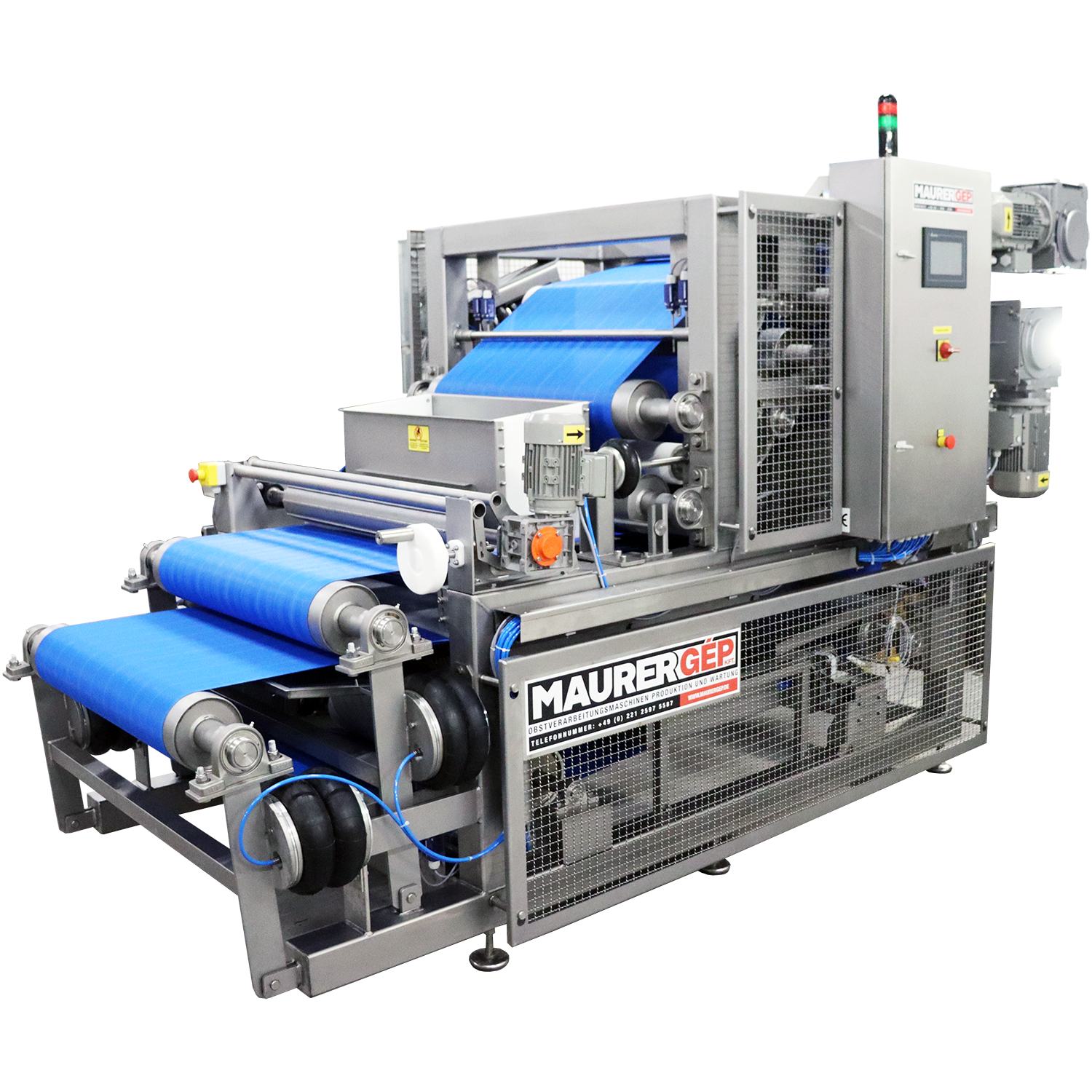

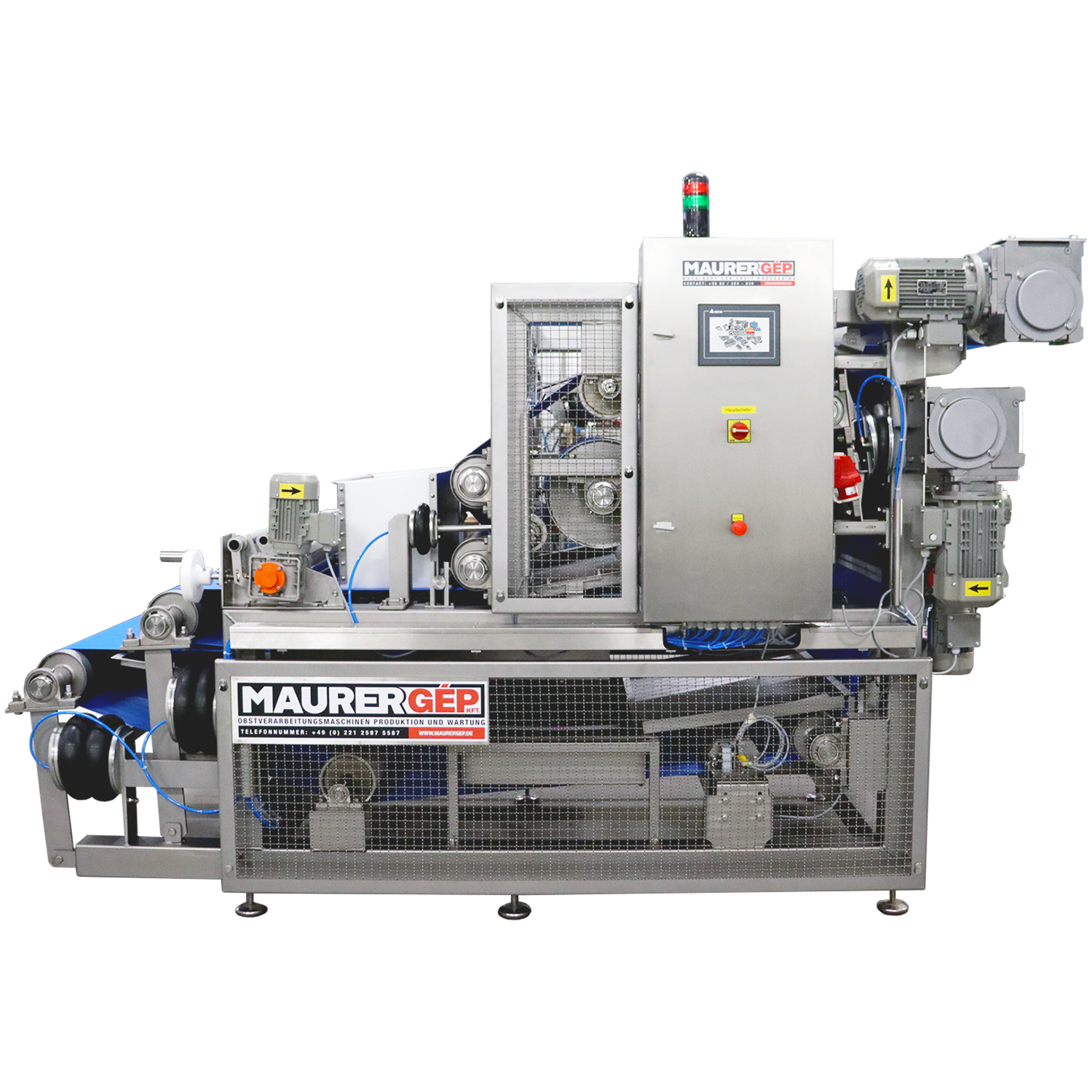

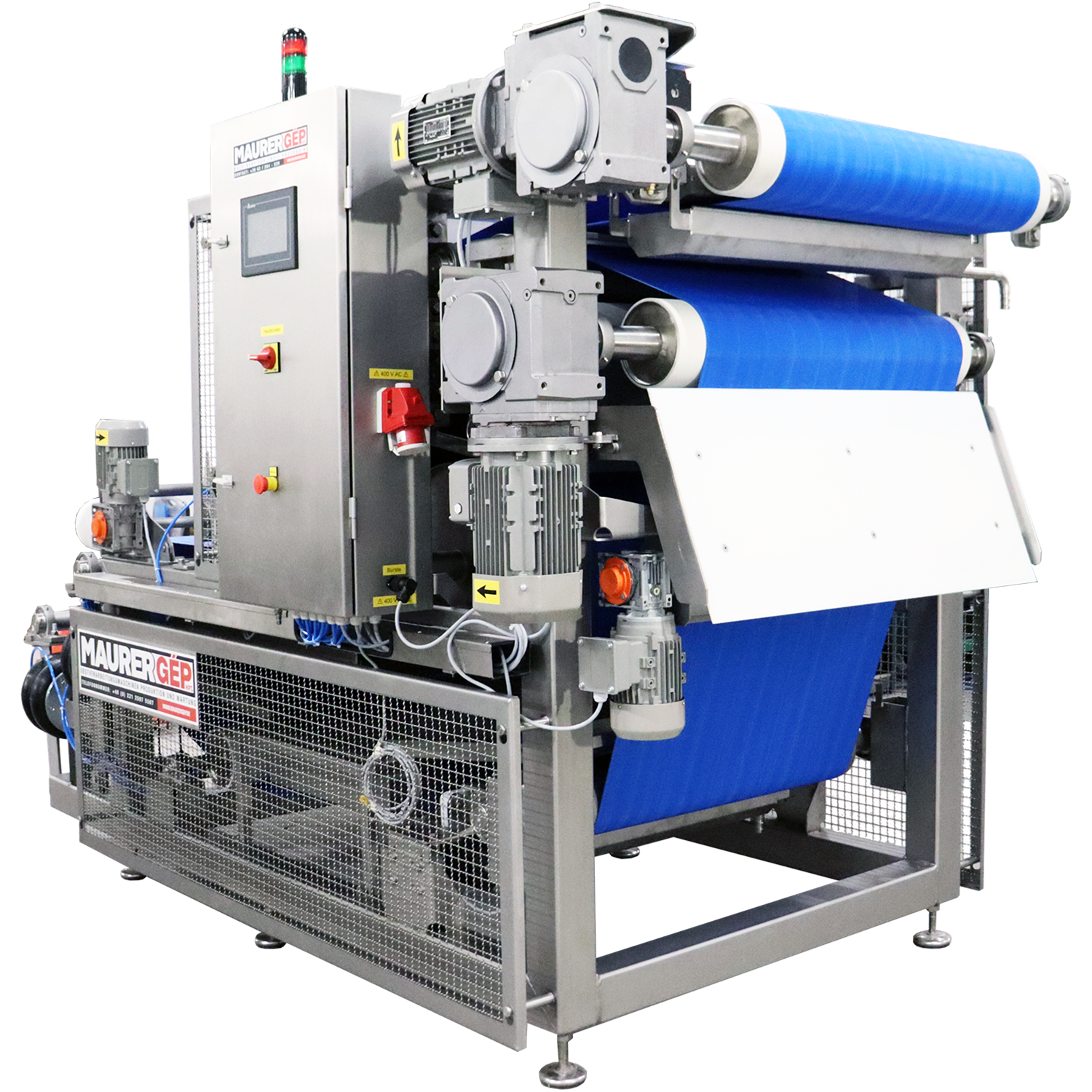

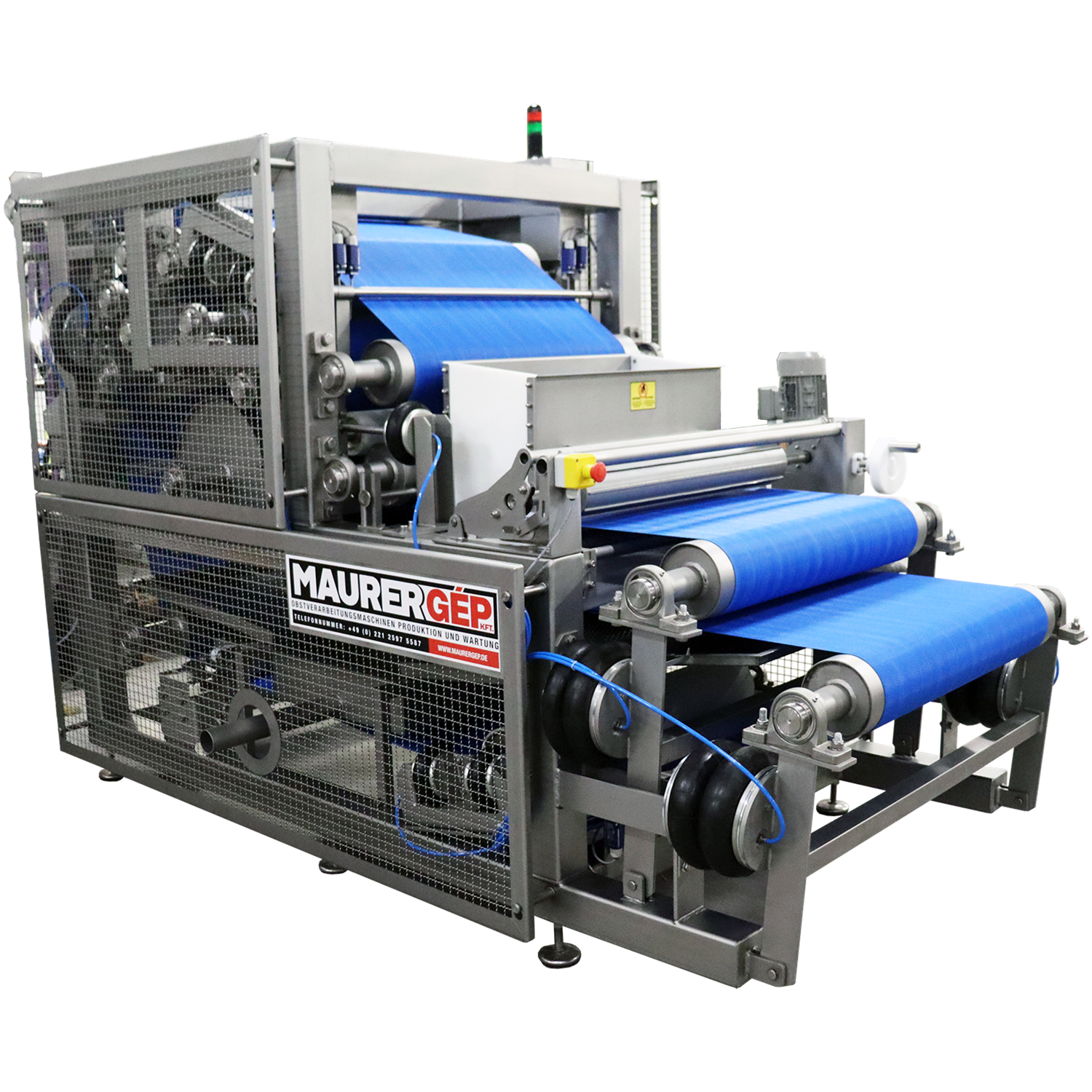

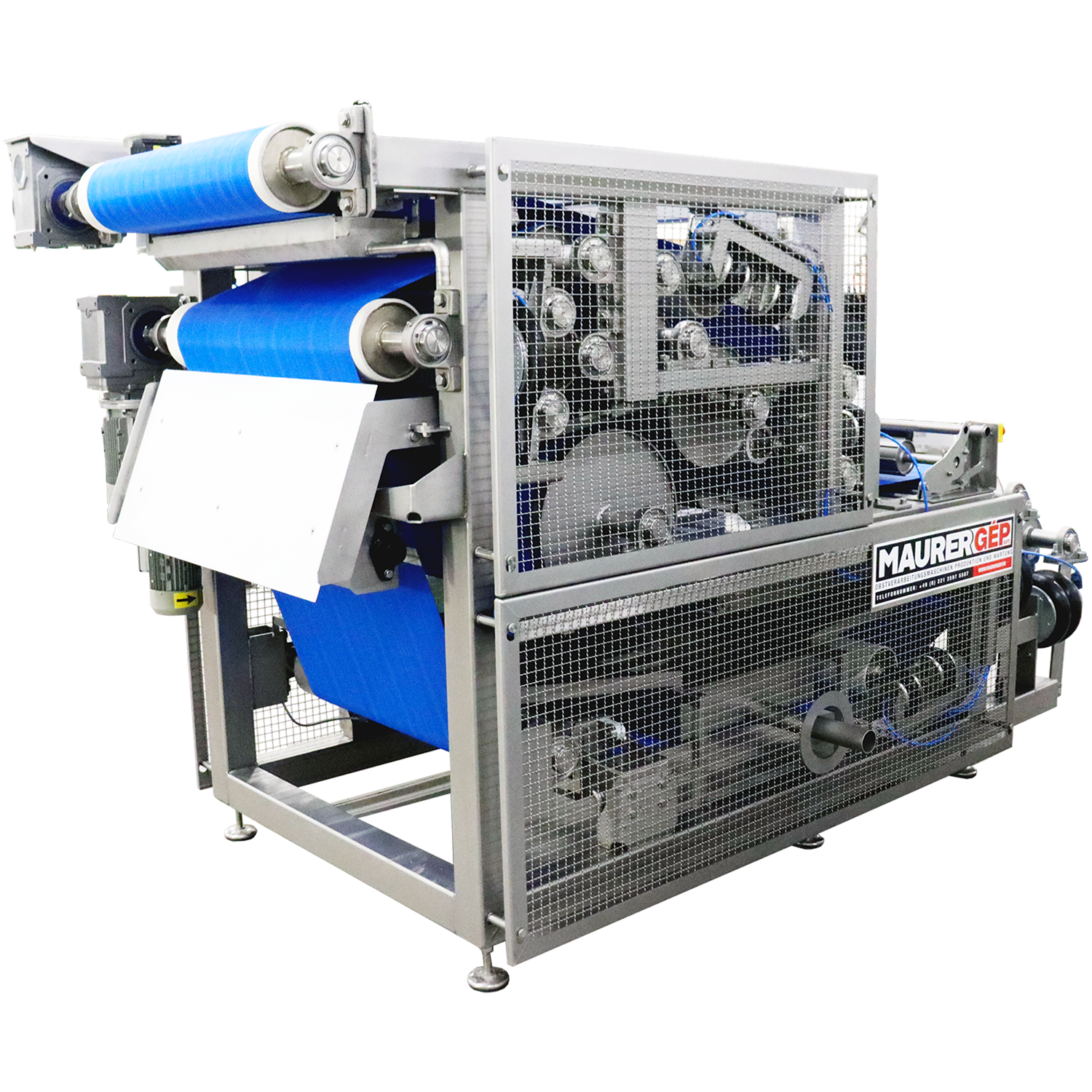

The Maurer MDSP 3500 is a fully automatic double belt press capable of processing up to 7,700 lbs of fruit per hour at a 75% juice yield. It features an enclosed work area to minimize juice oxidation and exposure to external elements with an enclosed removable juice collection hopper and pump. It features the smallest distance between pressing roller and collection tank of any belt press in its class, reducing the amount of foam in the collected juice. The MSP 1100's pneumatic leveling system will automatically adjust the rollers to ensure the belt maintains tension and pressure is evenly distributed at all times. Additionally, the press is outfitted with dual spinning washer heads that clean the belt while in operation.
The entire machine can be controlled via the onboard touchscreen control unit or wirelessly using a phone, tablet, or computer. The press can easily be disassembled and reassembled within a matter of minutes without using any tools.
The entire machine can be controlled via the onboard touchscreen control unit or wirelessly using a phone, tablet, or computer. The press can easily be disassembled and reassembled within a matter of minutes without using any tools.
DETAILS
- Hourly Production: 3.85 Ton
- Juice Yield: 75%
- IP65 Touch Screen Control Unit
- Wi-Fi connectivity for wireless access and operation
- Supplied with Variable Frequency Drive for adjustable speed control
- Belt: 2 mm thick, 6x16 filament / cm²
- Motor: 5.0 kW, 6.7 HP, 440v, 3-PH, 16A
- Dimensions: 122" L x 70" W x 79" H, 5100 lbs
- Requires external air compressor (not included) with minimum supply of 3.8 CFM and 100 PSI
- Requires external pressure washer with minimum water supply of 2.2 GPM
- AISI 304 stainless steel construction
- Made in Hungary by Maurer
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY!
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
*Installation and Set Up service available at additional cost
