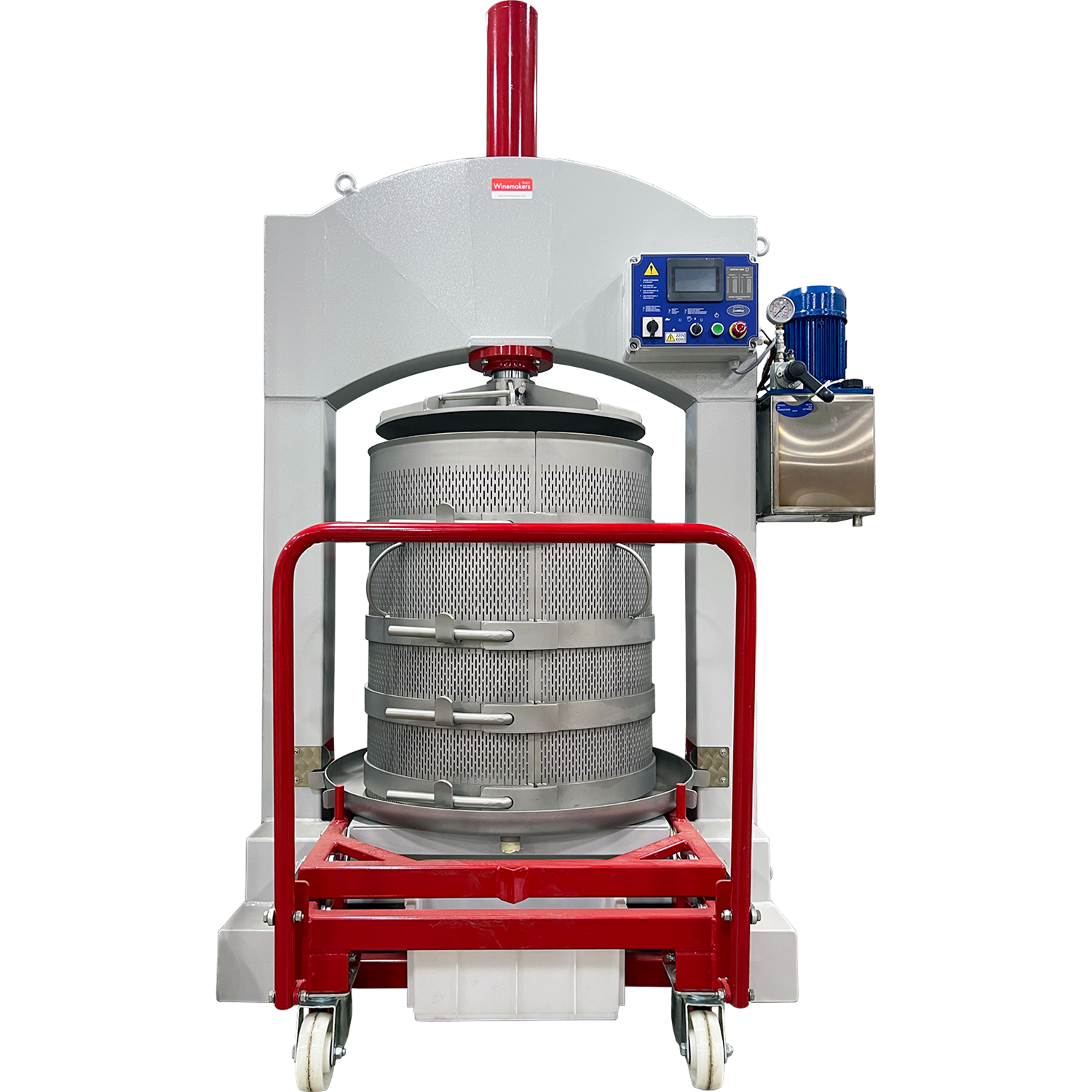

Hydraulic Vertical Press, "ATON"
(220 - 480 Liter)

Price: make selection(s)
  • Item #HPZ-
- +
Zambelli ATON presses stand out for their special constructive innovation: with only one trolley and suitable stands you may either move the whole press or use more cages for each working cycle. The oleodinamic gearbox is outfitted with a microcontacts gauge which automatically controls both the stop and the restart of the pump at the desired pressure and length of time. The ATON has two pressing modes: Manual and Automatic.

In Manual mode, the press will operate continuously at a maximum pressure set by the user—up to 350 Bar (5,075 PSI).

Automatic
 mode features a three-program pressing system that allows for 10 steps of increasing levels of pressure and pressing times per cycle. Programs 1 and 2 have been pre-set by Zambelli’s experts. Program 3 is completely customizable; allowing the user to set the number of steps, pressure levels, pressing times, and deltas.

To see a quick rundown of the operation of the press CLICK HERE

DETAILS
  • AISI 304 Stainless Steel Press Plate, Cage, and Basin
  • Oleodinamic Gearbox
  • Includes Rolling Cart with mechanical lift function for transporting Basket to and from Press
  • Locking pins secure Basket and Cart in place during pressing
  • Manual or Automatic pressing modes
  • Automatic mode contains 3 separate cycles with adjustable pressure and duration
  • Motor: 2.1 HP, 220v 1-PH, 10.2A
  • Steel Frame, Base, and Cart with baked enamel finish
  • Supplied with food-grade ISO 32 Bio-Hydraulic Oil
  • Italian made by Zambelli
 ATON 600ATON 700ATON 800
CAPACITY:
58 gal (220 lt)87 gal (330 lt)127 gal (480 lt)
MAX PRESSURE:350 BAR (5075 PSI)350 BAR (5075 PSI)350 BAR (5075 PSI)
PISTON STROKE:24 in (600 mm)26 in (650 mm)30 in (750 mm)
Ø PISTON:3.55 in (90 mm)4.33 in (110 mm)4.72 in (120 mm)
CAGE DIMENSIONS
Diameter:
Height:

24 in (600 mm)
30 in (750 mm)

28 in (700 mm)
33 in (850 mm)
31 in (800 mm)
37 in (950 mm)
TOTAL DIMENSIONS
Length:
Width:
Height:
55 in (1400 mm)
45 in (1150 mm)
90 in (2290 mm)
61 in (1550 mm)
55 in (1400 mm)
97 in (2460 mm)
66 in (1680 mm)
59 in (1500 mm)
107 in (2730 mm)
WEIGHT:893 lb (405 kg)1433 lb (650 kg)1720 lb (780 kg)

CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - Item must be crated for truck shipment. We will contact you about shipping and crating costs prior to finalizing order.
