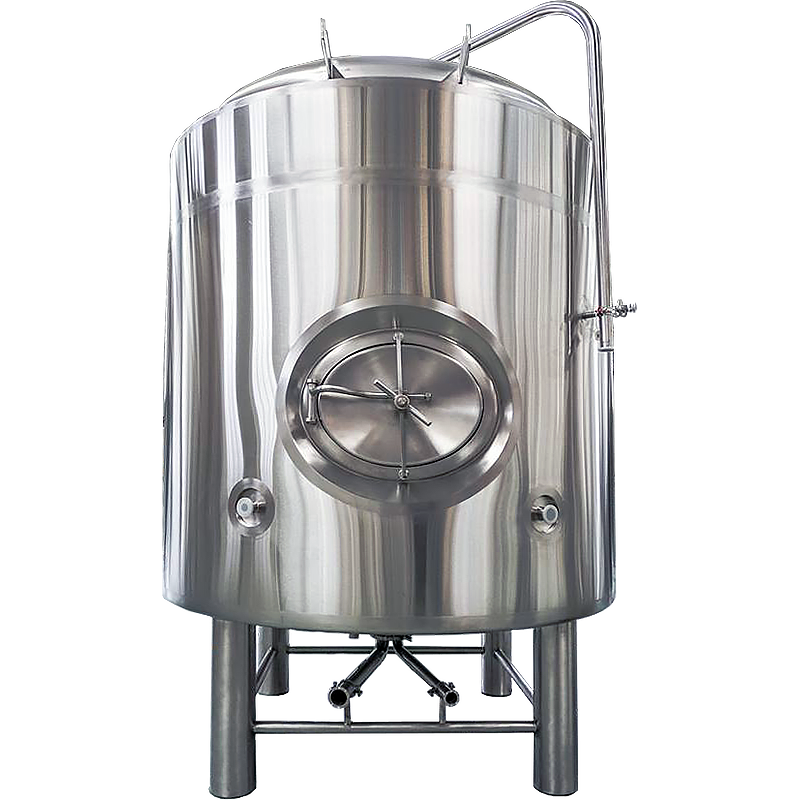

Jacketed Brite Tanks - Bright Tanks
Our Jacketed Brite Tanks are made from 304 stainless steel and built to our very high quality standards. All of our brite tanks are pressured tested at the factory and feature 100% sanitary welds. Every Brite Tank features an average 20% headspace not stated in the volume.
Features Include:
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
WINEMAKERS DEPOT
Your Trusted Source for Winery, Cider, Distilling Equipment & Supplies
Our Jacketed Brite Tanks are made from 304 stainless steel and built to our very high quality standards. All of our brite tanks are pressured tested at the factory and feature 100% sanitary welds. Every Brite Tank features an average 20% headspace not stated in the volume.
Features Include:
- Working Pressure of 15 PSI (Design Pressure of 43.5 PSI) - Not ASME Certified
- Dual-Zone Jacket with 3/4" NPT Ports (see Details below)
- AISI 304 Stainless Steel Double-Wall construction with 80 - 100 mm Polyurethane insulation
- Internal Cylinder: 3 mm thick with 2B finish and passivated
- External Cylinder: 2 mm thick with brushed satin finish
- Shadowless Oval Side Manway Door (3 BBL Tank has top manway door)
- Carbonation Stone with built-in Check Valve
- Racking Port with Tri-Clamp Butterfly Valve (10 BBL and larger) - This is a hard to find & very popular feature is included on all our larger tanks and can be added to smaller tanks upon request
- Drain Port with Tri-Clamp Butterfly Valve
- Sample Port with Tri-Clamp Perlick Valve
- Top Dry Hops Door (5 BBL and larger)
- CIP System with piping, internal spray ball, pressure gauge, and relief valve
- Top Pressure Relief Valve (10 BBL and larger)
- Thermometer with Thermowell
- Sight-level Gauge
- Ladder Rack (7 BBL and larger)
- Lift Rings
- Four Legs with Leveling Feet
- Sizes 3BBL to 15BBL kept in stock - Call or email to check availability
- 20BBL and Larger Built to Order - Call to order
| SIZE | CYLINDER VOLUME |
TOTAL VOLUME |
CYLINDER DIM (DIA x HGT) |
TOTAL DIM (DIA x HGT) |
JACKET | DRAIN PORT (TC) |
RACKING PORT (TC) |
SAMPLE PORT (TC) |
CIP PORT (TC) |
CARB PORT (TC) |
HOPS DOOR |
MANWAY DIM |
PVR VALVE |
LADDER RACK |
LIFT RINGS |
| 3 BBL | 3.29 BBL | 3.76 BBL | 700x1000 mm | 860x1900 mm | 600 mm, 2.1 m² | 1.5 in | 1.5 in | 1.5 in | 1.5 in | 350 mm (TOP) | CIP | YES | |||
| 5 BBL | 5.43 BBL | 6.46 BBL | 900x1000 mm | 1060x2050 mm | 600 mm, 2.9 m² | 1.5 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 280X380 mm | CIP | YES | ||
| 7 BBL | 7.85 BBL | 9.25 BBL | 1000x1170 mm | 1160x2250 mm | 600 mm, 3.5 m² | 1.5 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 280x380 mm | CIP | YES | YES | |
| 10 BBL | 11.4 BBL | 13.2 BBL | 1100x1400 mm | 1260x2500 mm | 800 mm, 5.7 m² | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 280x380 mm | CIP, TOP | YES | YES |

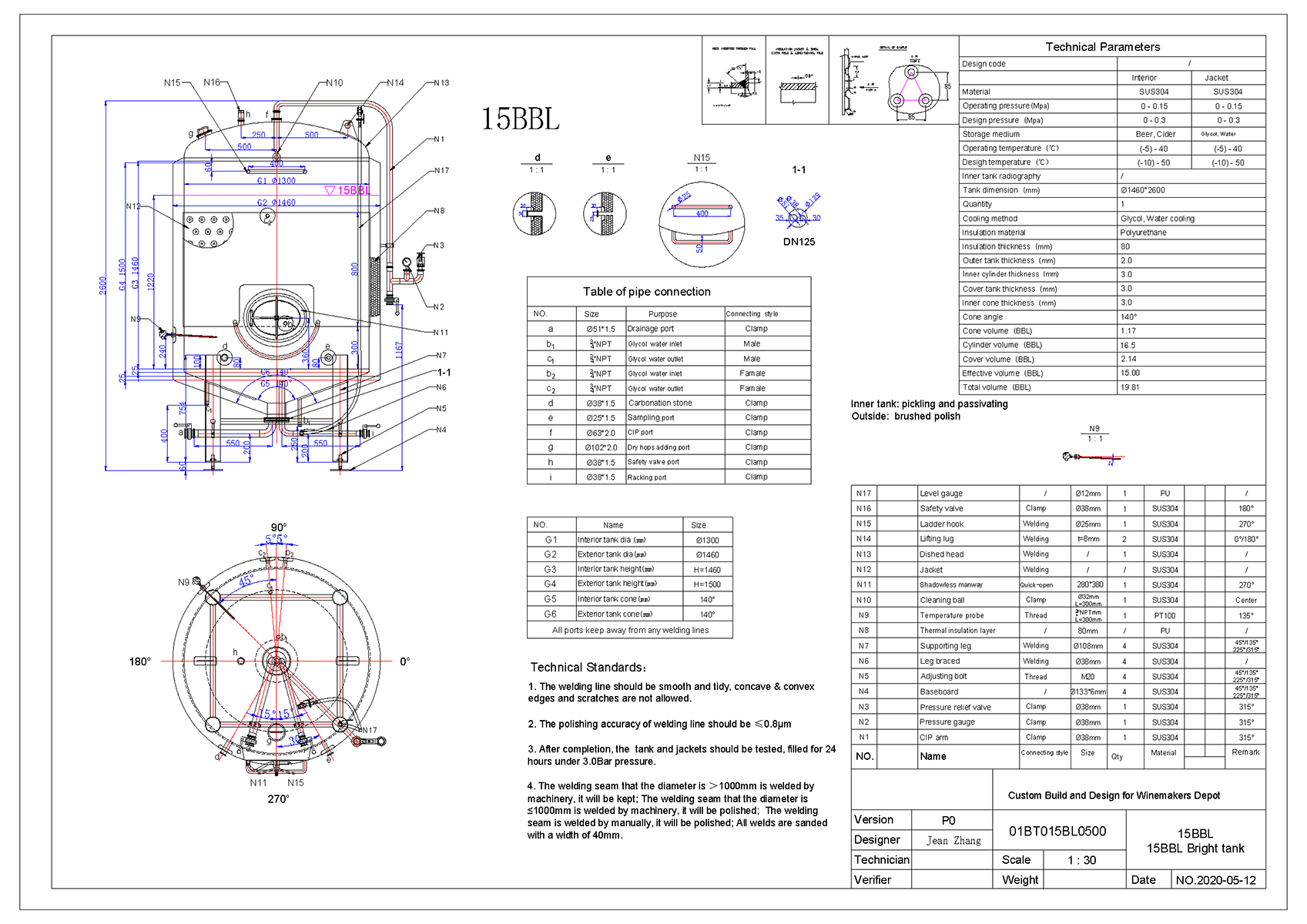

| 15 BBL | 15.9 BBL | 18.9 BBL | 1300x1400 mm | 1460x2600 mm | 800 mm, 5.7 m² | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 340X440 mm | CIP, TOP | YES | YES |
| 20 BBL | 18.4 BBL | 24.4 BBL | 1500x1220 mm | 1700x2650 mm | 800 mm, 7.3 m² | 2.0 in | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 340x440 mm | CIP, TOP | YES | YES |
| 30 BBL | 29.5 BBL | 37.3 BBL | 1600x1720 mm | 1800x3200 mm | 1000 mm, 9.5 m² | 2.0 in | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 340x440 mm | CIP, TOP | YES | YES |
| 40 BBL | 39.8 BBL | 46.2 BBL | 1700x1920 mm | 1900x3500 mm | 1000 mm, 9.9 m² | 2.0 in | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 340x440 mm | CIP, TOP | YES | YES |
| 50 BBL | 50.3 BBL | 57.5 BBL | 1800x2220 mm | 2000x3900 mm | 1200 mm, 11.9 m² | 2.0 in | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 340x440 mm | CIP, TOP | YES | YES |
| 60 BBL | 59.1 BBL | 73.8 BBL | 2000x2200 mm | 2200x3900 mm | 1200 mm, 11.9 m² | 2.0 in | 2.0 in | 1.5 in | 1.5 in | 1.5 in | 4.0 in | 340x440 mm | CIP, TOP | YES | YES |
