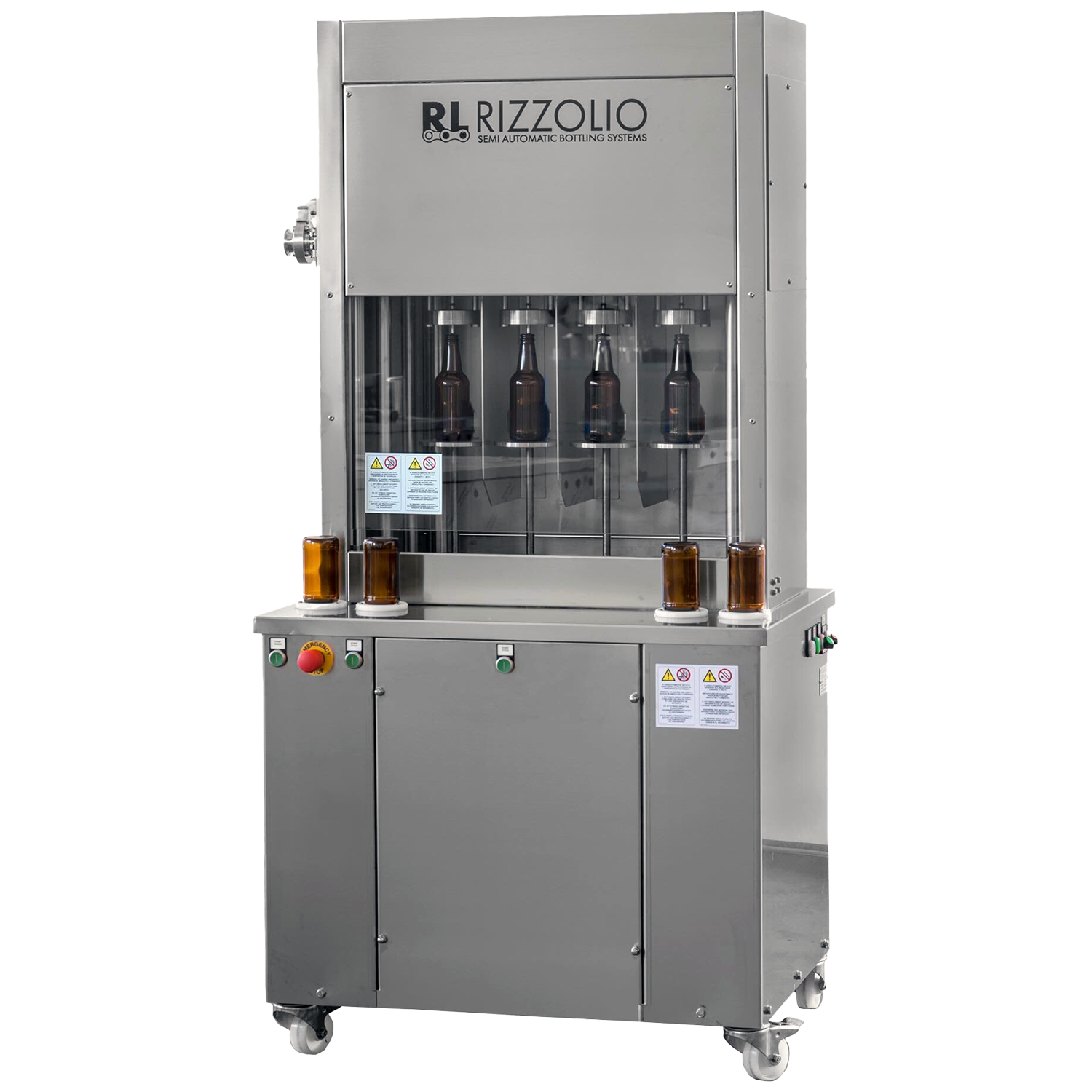

The RLV ISO by RIZZOLIO is a semi-automatic isobaric bottle filler available in 2-nozzle, 4-nozzle, and 6-nozzle configurations. It is designed for precise filling of carbonated beverages, such as cider, beer, sparkling wine, and sparkling water; but can also be used for filling still (non-carbonated) liquid. At the start of the filling cycle, a vacuum is applied to the bottles, creating negative pressure within. The bottles are then filled with gas (CO²), displacing the small amount of remaining oxygen and forcing it to the top of the bottle. A secondary vacuum is then applied to remove the top layer of oxygen before the bottles are filled. The filling nozzles draw product from the overhead filling tank, which is also pressurized with CO². The nozzles force product to flow down the interior sides of the bottles to minimize turbulence and reduce foam. Once the set fill level is reached, the pressure within the bottle is stabilized and the vacuum seal between nozzles and bottle openings is released. The layer of carbonized foam between the top of the product and the bottle opening acts as a barrier to prevent oxygen from entering.
The RLV ISO Isobaric Filler can be outfitted with rinsing stations for bottles and can be set up for automatic operation with onboard Touchscreen Control Panel.
CLICK HERE to watch the Rizzolio RLV ISO 4 Rinse and Fill Bottles.
DETAILS
- Production: 200 - 600 bottles per hour
- Two, Four, or Six Filling Heads
- Double O² Evacuation and CO² Injection, resulting in less than 28 PPB dissolved O²
- Bottle Diameter: 55mm - 110mm
- Bottle Height: 100mm - 340m
- Intake Pressure required: 2.5 Bar (36 PSI) (optional pump available if pressure from Brite Tank is under 2.5 Bar)
- Maximum Filling Pressure: 5 Bar (72 PSI)
- Compressed Air Consumption 120 L/min at 7 Bar (4.25 cfm at 105 PSI)
- Product Intake Connection: 2.0" Tri-Clamp
- CO² / Gas Connection: 3/8" FPT
- Compressed Air Connection: 3/8" FPT
- Cleaning Temperature: 60° C
- AISI 316 stainless-steel nozzles
- AISI 304 stainless-steel tank and frame
- Power: 0.5 kW, 240v, 1 PH, 20A
- 300 - 650 lbs
- Made in Italy
Optional Features:
CALL FOR PRICING & AVAILABILITY
WINEMAKERS DEPOT
Your Trusted Source for Winery, Cider, Distilling Equipment & Supplies
- Automatic Filling Cycle and Doors with PLC Touchscreen Control Unit
- Rinsing Station for two, four, or six bottles/cans
- Diaphragm Pump for product loading up to 2.5 Bar
- Steam Washing kit and piping
- Hardware set for additional bottle and can formats
- Return Manifold for CIP System
