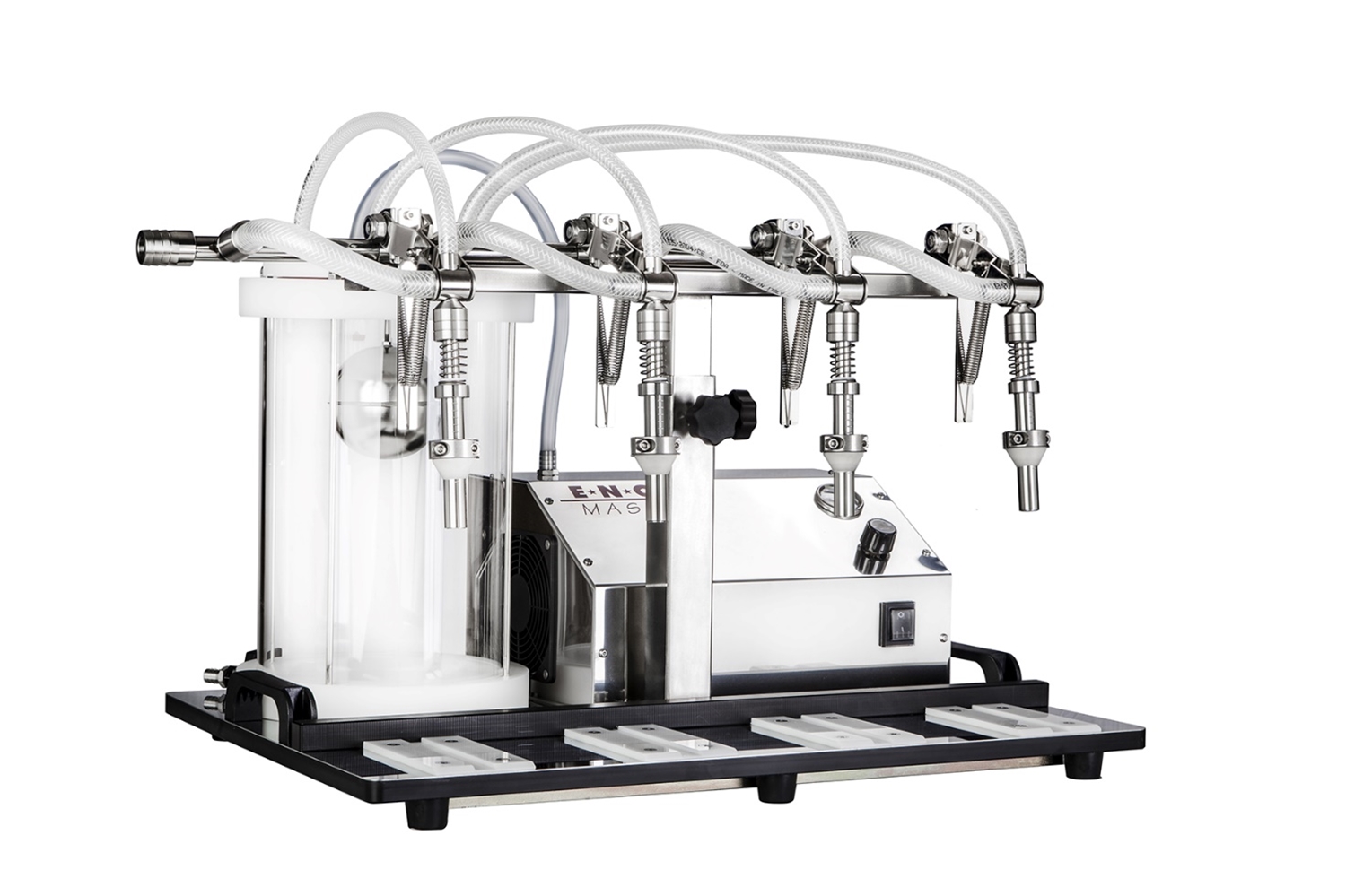

The Enolmaster Professional Vacuum Bottle Filler for Dry Spirits and other High Alcohol Content or High Temperature liquids and beverages - is constructed entirely of AISI 316 and AISI 304 stainless steel and is outfitted with four high-efficiency stainless steel filling nozzles. Using vacuum operated filling, the product is bottled while maintain its original quality. When placing the bottle under the machine, the fluid is drawn by the vacuum created inside it, without any contact between the product and pumps or mechanical components. Enolmaster fills about 600 bottles an hour (750ml), in perfect hygienic conditions and with no product spillage. The filling level is adjustable; once selected, it automatically fills the bottle to the desired level. In addition, the tank from which the fluid is taken for bottling can be placed up to 4 meters below the unit.
Check out this video: Enolmaster Video
The Enolmaster is hands down the most popular filling system for Boutique Wineries, Craft Distilleries and countless other beverage and liquid markets for many reasons. The five most talked about is Accuracy - The flow into the bottle stops when it is supposed to stop; Gentle on your product - Your wine, cider, or other beverage is not exposed to the rigors of another pump; Compact - Has a small footprint taking up less space than other systems; Easy Set Up - No pumps and hoses as the unit is self contained; Durability - This system is designed, engineered and constructed to very high standards that when properly maintained provides for many years of use in a commercial environment.
The components of this filling system will handle alcohol content up to 90% but this is NOT certified explosion proof and should be used in well ventilated area. It should be noted that 70% alcohol is 140 proof and has a flash point of 70 Degrees Fahrenheit, making the product volatile as well as flammable. The standard version has an onboard electric motor and the Pneumatic version does not. Neither system is Atex Certified and the Pneumatic version is recommended for products with the highest alcohol content (read below).
DETAILS
- Designed for High Proof / High Alcohol Content non-viscous products and beverages
- Capable of handling High Temperatures- up to 248°F (120°C)
- Equipped with a Pyrex Vacuum Vessel and Pharmapress Hoses for processing higher temperatures and alcohol content
- AISI 304 Stainless Steel Base and Frame
- AISI 316 Filling Nozzles
- Stainless Steel Float
- Accommodates bottles with inner neck diameter of 18 - 28 mm
- Accommodates bottles 200 - 410 mm in height
- 110v Single-Phase Motor
- Intended for Glass Bottles - Most Plastic Bottles will Collapse due to use of Vacuum
- *For plastic bottles we require you send us samples to confirm they will not collapse due to the vacuum pressure
- Fills up to 600 Bottles per hour (750ml)
- Dimensions 650x460x450mm
- Weight 30 kg or 70 lb
- Italian made by Tenco
- This unit will also work for wine and cider (non-carbonated) but we have a less expensive version specifically for low alcohol content
- Contact us as we have most options available upon request
- For Alcohol Content above 40% we recommend our Pneumatic Option (See Below)
- For Wine, Still/non-Carbonated, Low Temp/Low Alcohol see our Wine & Cider Version
- For Viscous and or Sugary Products such as Oils, Liqueurs or Vinegar see our see our Liqueurs & Oils Version
- For Miniature Bottles with 7.5-15mm Openings (See Mignon Variant Below)
- Oversized option for bottle openings up to 65mm diameter is available
- Inline Cartridge Filtering System (Will show as option when adding to Cart)
- Filter Cartridges
- Beer Bottling Heads
- Oil or Viscous Spirits Bottling Heads
- The standard wine bottling heads work for dry spirits and ciders
- Tomato Kit
- Jar Filling Kit
- Products that create foam or are sugary, such as Liqueurs or Vinegars, require the use of the Oil Bath Filter
- Perfect solution for Small Format/Miniature Bottles to fill Dry Spirits, E-Liquids, CBD Oils, Edible Oils, and More
- Nozzles to be Mignon for Smaller Bottles with Opening of 7.5-20mm
- Will work for MOST Miniature Plastic Bottles as they typically are RIGID - We can test your samples to confirm
- Bottle Support for Filling of Smaller Bottles of 1/2-inch to 7.5-inches Tall
- Low Manifold to Prevent "Back Flow/Siphoning"
Pneumatic Variant - The Pneumatic Variant Will Include the Following:
Check out these additional videos to see the Enolmaster in operation:- Air Filtering Unit
- Air Pressure Regulator
- Slide Valve
- Manometer
- Comes with "Push to Connect L" Fitting that accepts 5/16-inch OD hose or remove to replace with 1/4-inch MPT Fitting of your choosing
- DOES NOT Include Compressor
- Operates at 60-90 PSI
- Air Consumption Max 45NL/Minute (Less than 2 SCFM)
- This system is recommended for alcohol content above 44% because there is no onboard motor
- This system is NOT Atex Certified
Enolmaster Video (1)
Enolmaster Video (2)
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY - We will call with actual shipping costs prior to shipping or charging your credit card.
WINEMAKERS DEPOT - Your Trusted Source for Bottling Equipment Solutions
