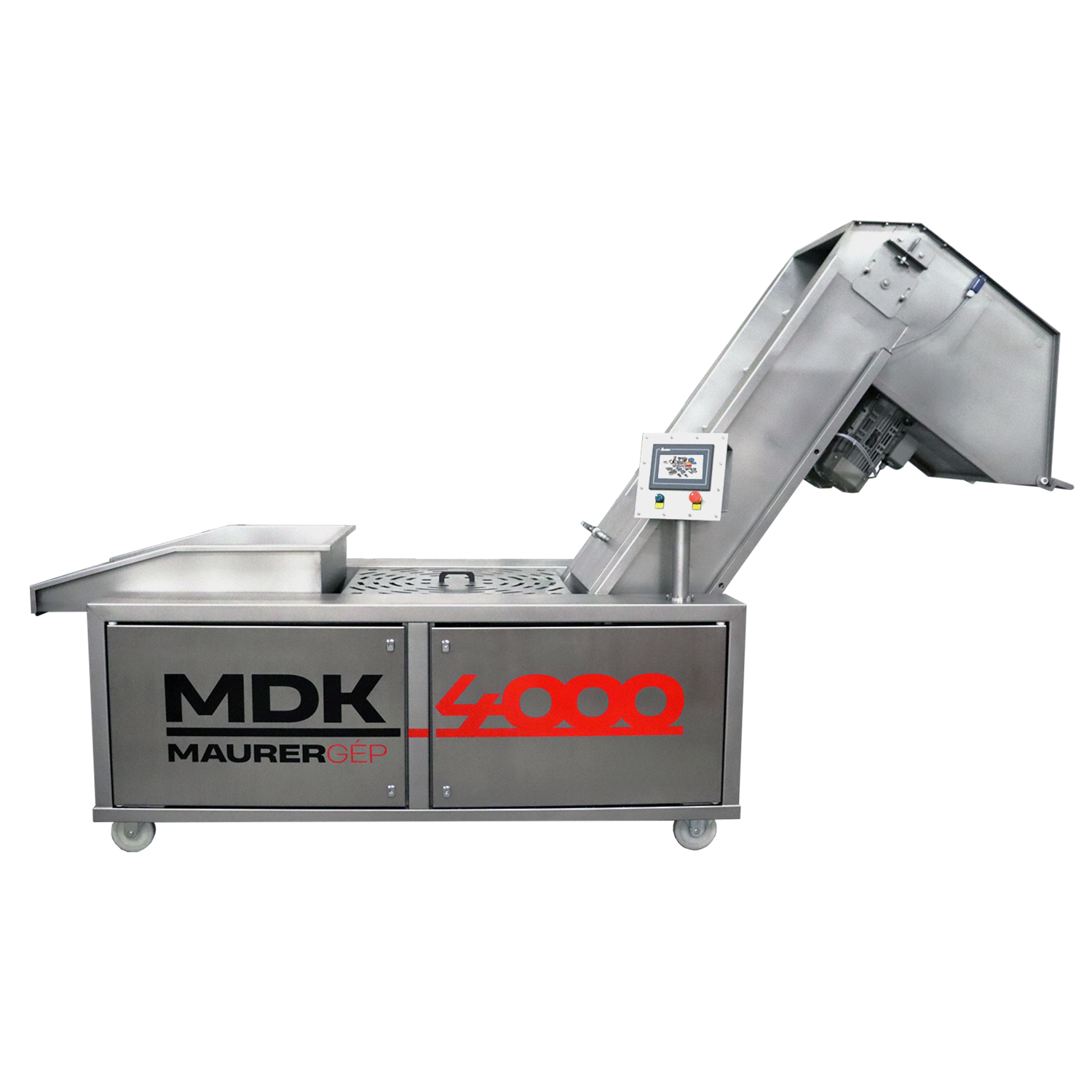

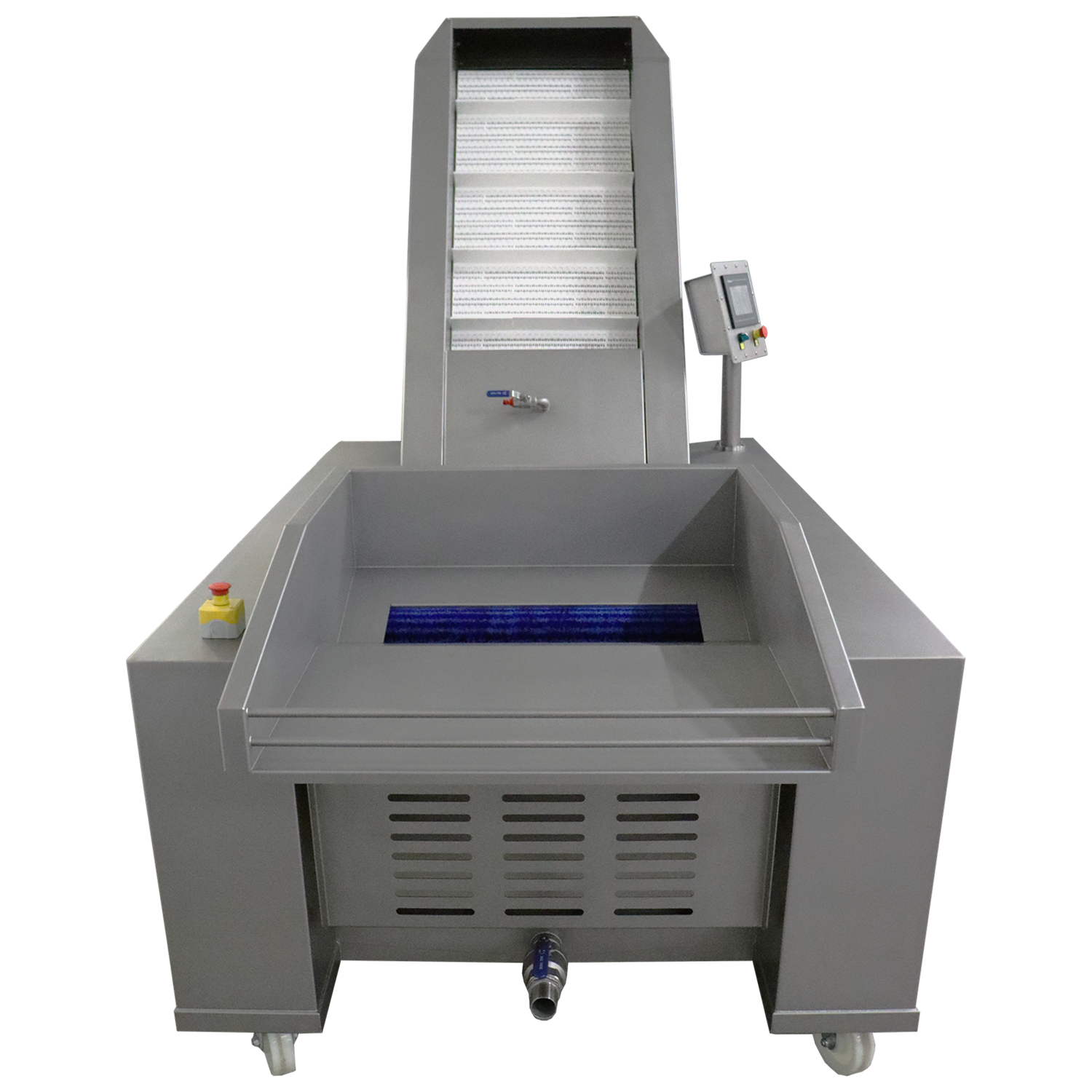

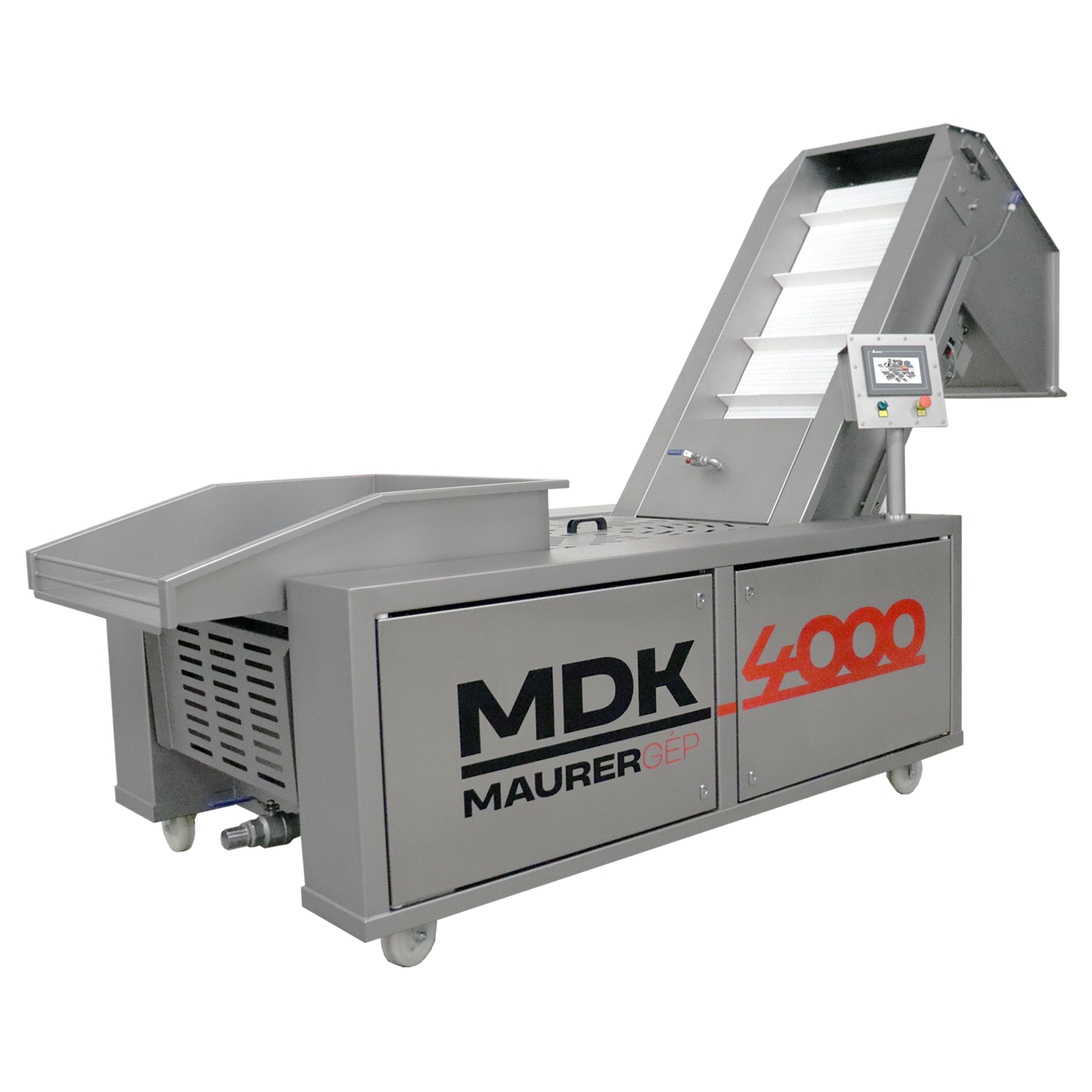

The MDK 4000 by Maurer is a fruit elevator that features a washing basin with spray jets & scrubbing brushes, debris collection filters, and pressure sprayers; along with dual centrifugal mills. It is capable of processing approximately 8000 lbs of fruit per hour.

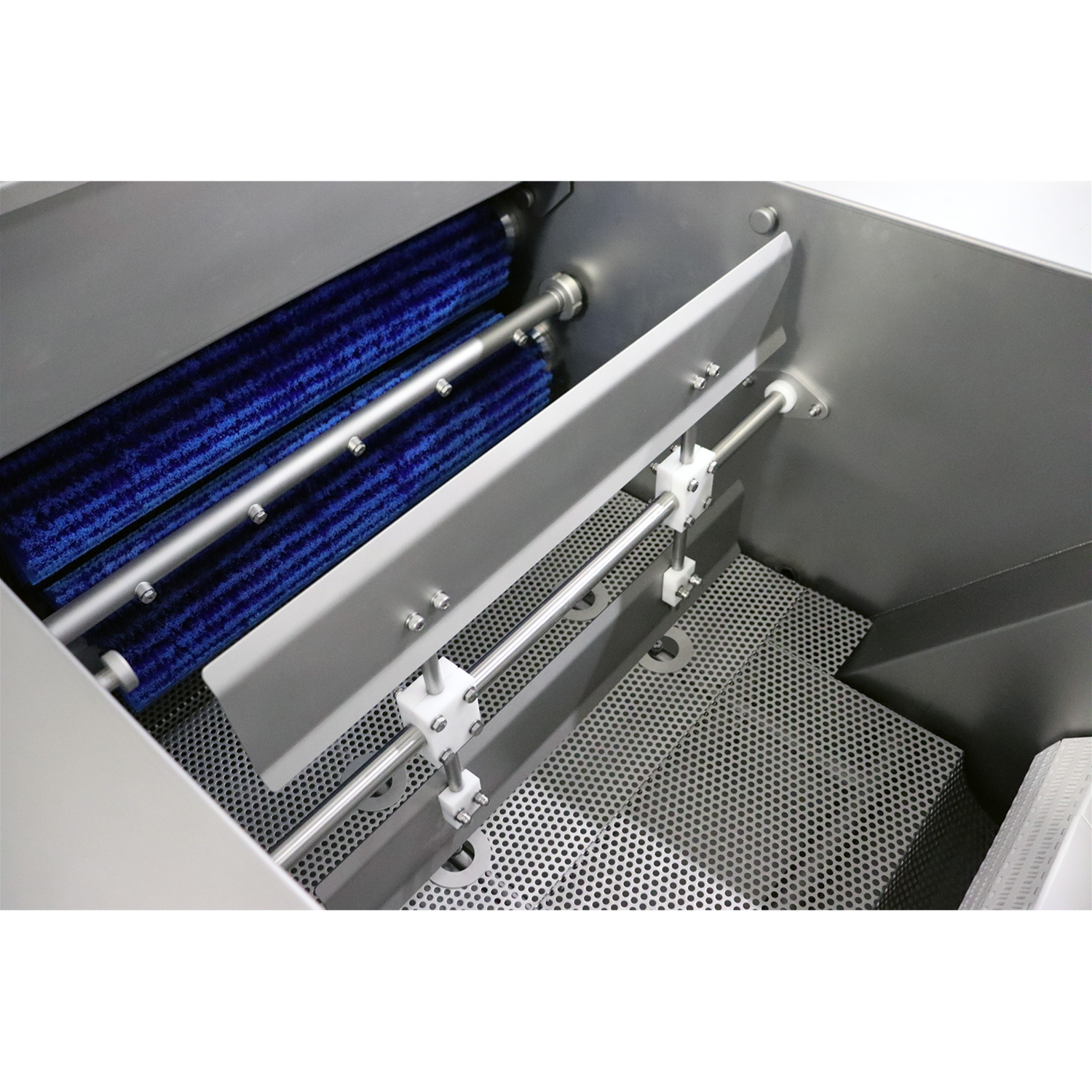

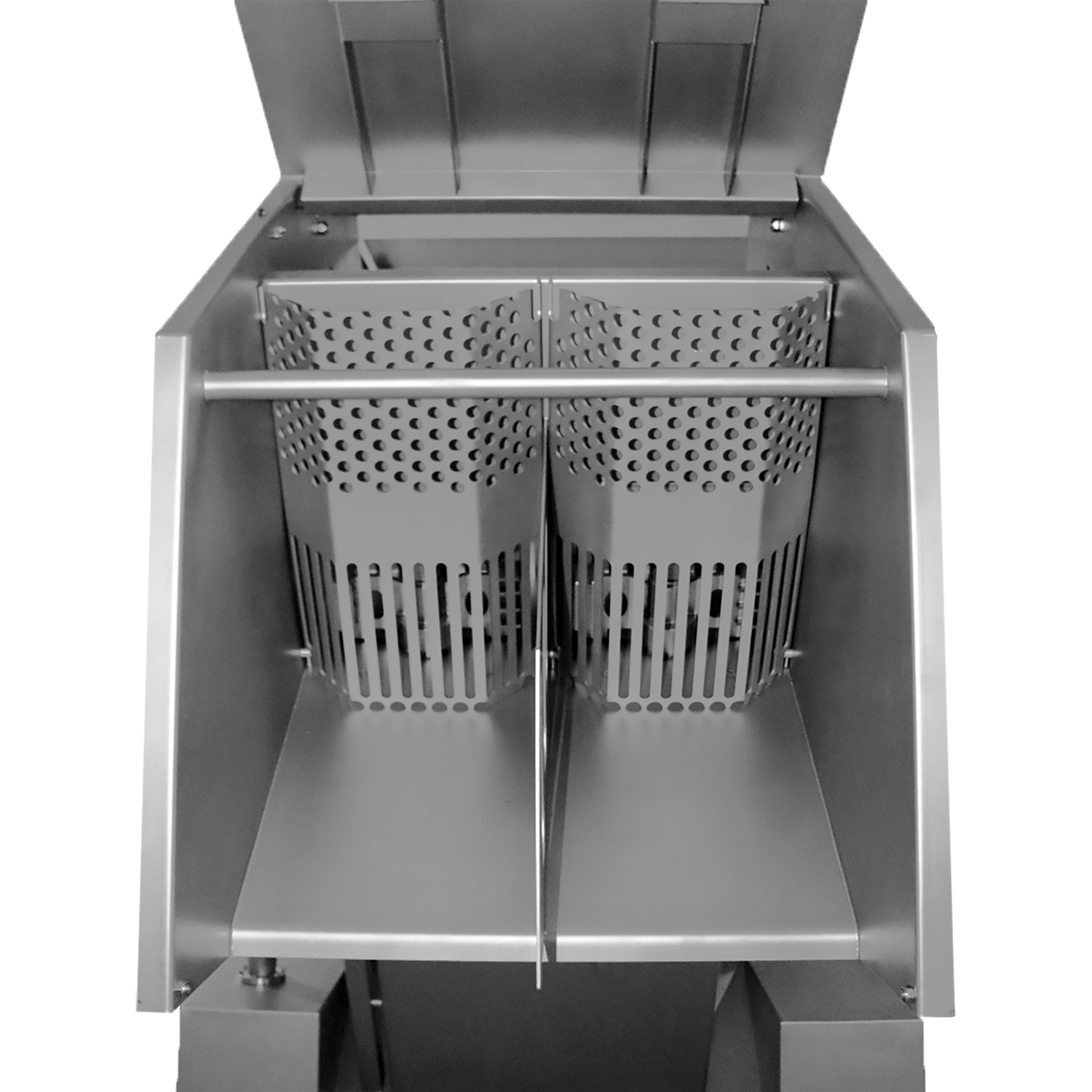

The entrance to the washing basin features four spinning brushes that scrub the fruit once it's dumped into the basin, along with rotating paddles that feed the cleaned fruit onto the elevator. An onboard recirculation pump and air compressor are used to create bubble jets within the wash basin to clean the fruit. At the bottom of the basin are two removable grates that allow the removed dirt to settle whilst keeping the fruit afloat. The basin also contains two skimming filters that separate floating debris (stems, leaves, twigs, etc.) from the fruit. The open-top chain elevator features high-pressure spraying nozzles and allows you to see the fruit as it makes its way up to the mill. The dual mills contain interchangeable mill screens for processing fruits and vegetables of different consistencies and moisture content.
The MDK 4000 is outfitted with a touchscreen control unit with Wi-Fi that enables both remote operation of the machine, as well as communication between it and other connected Maurer equipment.
CLICK HERE to watch in MDK 3000 Washing Elevator and Mill operate.
DETAILS
- Hourly Production: up to 4.0 Ton
- Ideal for cleaning and milling apples, pears, and similar fruits for juice or cider
- Supplied with 9 mm Cutting Screen and 16 mm Round Hole Screen
- Additional Cutting, Perforated, and Slotted screens available
- Available with continuous-feed output chute for use with belt press, or dosing chute for use with packing presses
- Supplied with Variable Frequency Drive for adjustable speed control
- Wi-Fi enabled touchscreen control unit
- Motor: 6.0 kW, 240v 3-PH, 16A
- Bin Load: 27" H
- Mill Discharge: 55" H
- Dimensions: 152" L x 56" W x 87" H
- 2200 lb Transport Weight
- AISI 304 stainless steel construction
- Made in Hungary by Maurer
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly, they may be received with very minor scratches not that dissimilar than they will receive during their normal use but are guaranteed to arrive in working order.
This item is not crated for shipping either when imported to the U.S. or shipped to our customers as the added weight would make them cost prohibitive to ship. Accordingly, they may be received with very minor scratches not that dissimilar than they will receive during their normal use but are guaranteed to arrive in working order.
