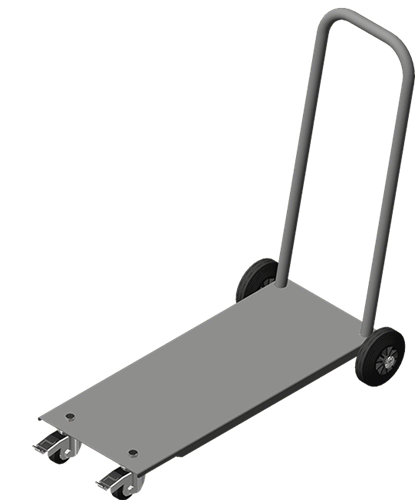

Stainless steel heavy duty carts, ideal for mounting Cartridge Filter Housings, Lenticular Filter Housings, and/or Stationary Pumps (such as Diaphragm Pumps).
DETAILS
- AISI 304 Stainless Steel
- Rubber Wheels Wheels
- Small cart equipped with 2-piece handle that can be broken down for easier storage
- Medium & Large carts equipped with locking front casters
| SMALL (13" x 7") | MEDIUM (18" x 11") | LARGE (28" x 11") | |
| BASE DIMENSIONS Length: Width: | 12.84 in (326 mm) 7.01 in (178 mm) | 17.72 in (450 mm) 11.22 in (285 mm) | 27.56 in (700 mm) 11.22 in (285 mm) |
| TOTAL DIMENSIONS Length: Width: Height: | 23.58 in (599 mm) 11.97 in (304 mm) 26.02 in (661 mm) | 22.72 in (577 mm) 15.98 in (406 mm) 28.94 in (735 mm) | 32.36 in (822 mm) 15.98 in (406 mm) 28.94 in (735 mm) |
| WHEEL DIAMETER Front: Rear: | 4.92 in (125 mm) Fixed N/A | 2.36 in (60 mm) Casters 4.92 in (125 mm) Fixed | 2.36 in (60 mm) Casters 4.92 in (125 mm) Fixed |
These carts must ship via truck only due to their unusual shape and design that is not small package shipment friendly
