Sanitary bag filters are an excellent way to perform depth filtration and widely used for pre-filtration in the beverage, dairy and other food and pharmaceutical applications. Typically used upstream of cartridge and membrane applications and are cost effective and easy to operate.

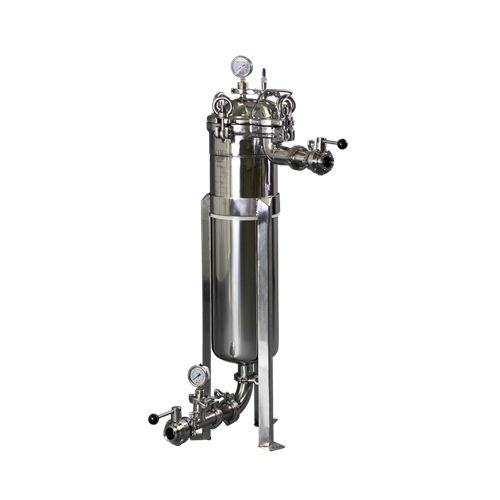

Made of AISI 316 Stainless Steel, the #2 housing uses a 7" dia. x 33" long bag. Liquid flow is from the inside of the filter bag to the outside. The support basket and filter bag are securely locked into a recess at the top of the overflow rim, providing a 360 degree positive compression seal. Since the filter bag is locked in at the top of the vessel, all material removed is trapped inside the bag.
Specifications:
WINEMAKERS DEPOT
Your Trusted Source for Winery, Cider, Distilling Equipment & Supplies
Made of AISI 316 Stainless Steel, the #2 housing uses a 7" dia. x 33" long bag. Liquid flow is from the inside of the filter bag to the outside. The support basket and filter bag are securely locked into a recess at the top of the overflow rim, providing a 360 degree positive compression seal. Since the filter bag is locked in at the top of the vessel, all material removed is trapped inside the bag.
Specifications:
- Maximum operating pressure 150PSI
- Maximum working temperature 284ºF
- Estimated Flow Rate: 9.0 Sq Meters per hour (40 Gal. per Minute) - subject to product being filtered and bag micron rating
- Filter area: 0.5 Sq Meters
- Inlet & outlet: 2" TriClover
- Uses 7"x33" Bag Filter
- Over-The-Top design
- 2” Sanitary Connections for Inlet/Outlet
- (2) 2-inch Butterfly valves for inlet & outlet included (not shown in photo)
- 1 1/2” Sanitary Diaphragm Pressure gauge
- ½-inch Vent
- 1/4” NPT Vent Port with industrial stainless-steel ball valve
- Includes stainless Tripod Stand that has Adjustable Legs with feet for fixed mounting to floor, skid or cart
- Removable stainless steel filter basket/restrainer basket
