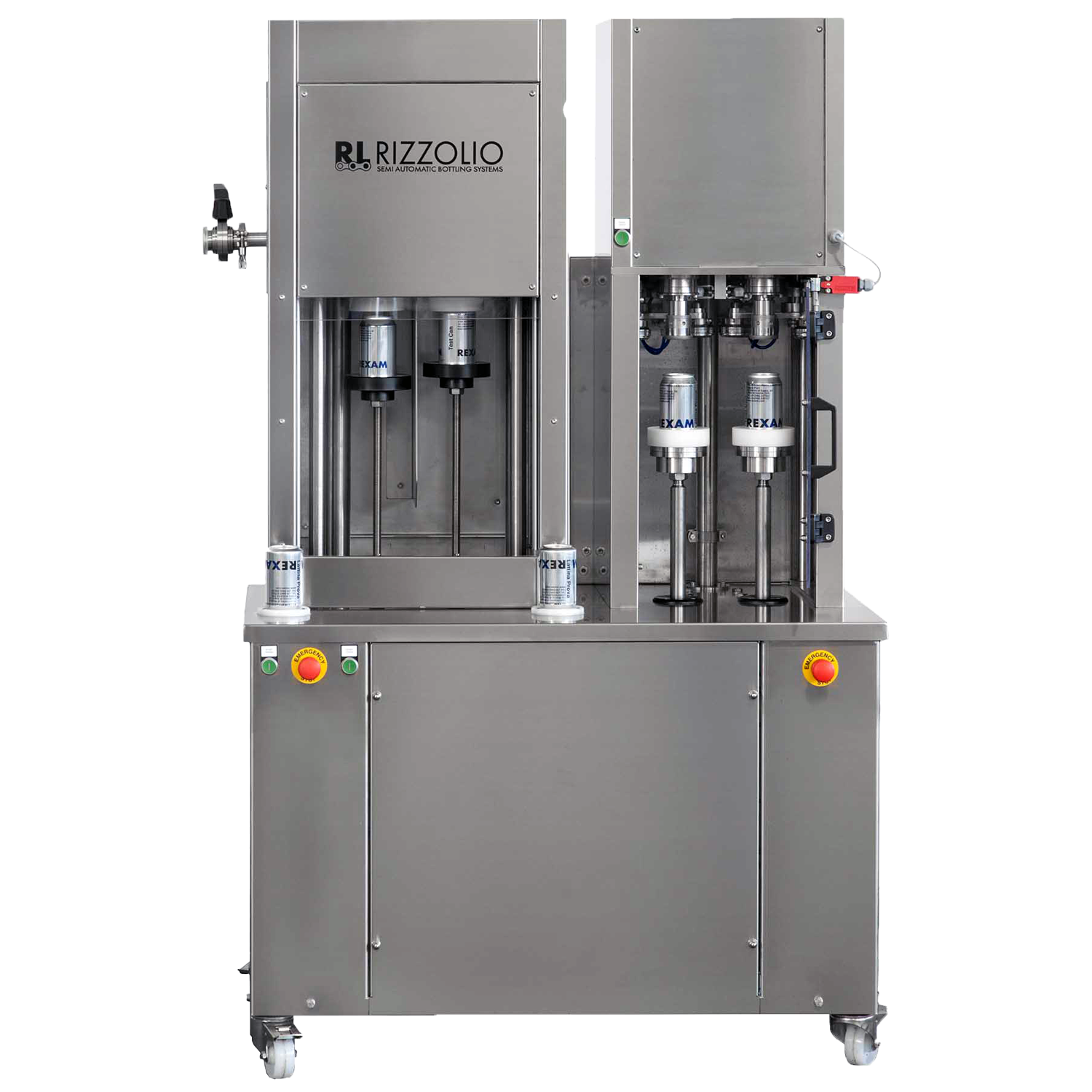

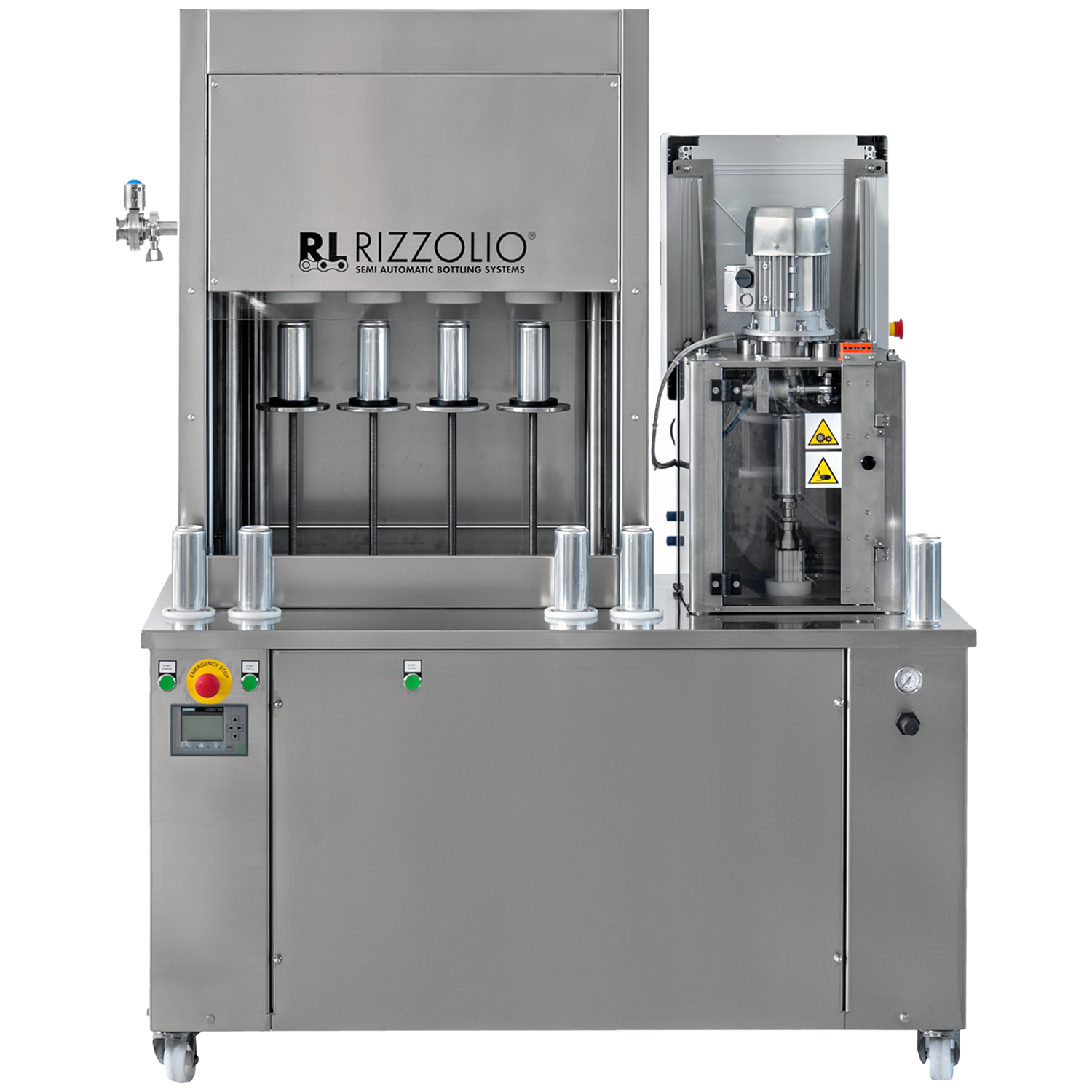

The RLV ISO-2CS by RIZZOLIO is a semi-automatic isobaric can filler and seamer available in 2-nozzle, 4-nozzle, and 6-nozzle configurations. It is designed for precise filling of carbonated beverages, such as cider, beer, sparkling wine, and sparkling water; but can also be used for filling still (non-carbonated) liquid. At the start of the filling cycle, the cans are automatically raised to the filling nozzles, where an airtight seal is made around the top of the cans. Using multiple ports within the nozzles, they fill the can with gas (CO²) while a light vacuum pulls out the oxygen that is being displaced. The filling nozzles draw product from the overhead filling tank, which is also pressurized with CO², and force product to flow down the interior sides of the cans to minimize turbulence and reduce foam. Once the set fill level is reached, a quick shot of gas is added to the product to create a layer of carbonized foam that acts as a barrier to prevent oxygen from entering. After filling, the user places tops on the cans and moves them to the seaming station where the RLV ISO-2CS automatically seams the top to the can, ensuring an airtight seal for long-term storage and preservation of the product inside.
The RLV ISO-2CS Isobaric Can Filler and Seamer can be outfitted with rinsing stations for cans and can be set up for automatic operation with onboard Touchscreen Control Panel.
Rizzolio lsobaric Filler also available for bottles HERE.
CLICK HERE to watch full filling and seaming process, from start to finish, with the RLV ISO-2CS.
DETAILS
- Production: 200 - 600 cans per hour
- Two, Four, or Six Filling Heads
- Dual Can Seaming Heads
- Double O² Evacuation and CO² Injection, resulting in less than 28 PPB dissolved O²
- Can Diameter: 53mm - 70mm
- Can Height: 120mm - 180mm
- Intake Pressure required: 2.5 Bar (36 PSI) (optional pump available if pressure from Brite Tank is under 2.5 Bar)
- Maximum Filling Pressure: 5 Bar (72 PSI)
- Compressed Air Consumption 120 L/min at 7 Bar (4.25 cfm at 105 PSI)
- Product Intake Connection: 2.0" Tri-Clamp
- CO² / Gas Connection: 3/8" FPT
- Compressed Air Connection: 3/8" FPT
- Cleaning Temperature: 60° C
- AISI 316 stainless-steel nozzles
- AISI 304 stainless-steel tank and frame
- Power: 0.75 kW, 240v, 1 PH, 20A
- 900 - 1400 lbs
- Made in Italy
Optional Features:
CALL FOR PRICING & AVAILABILITY
WINEMAKERS DEPOT
Your Trusted Source for Winery, Cider, Distilling Equipment & Supplies
- Automatic Filling Cycle and Doors with PLC Touchscreen Control Unit
- Rinsing Station for two, four, or six cans
- Diaphragm Pump for product loading up to 2.5 Bar
- Steam Washing kit and piping
- Hardware set for additional can formats
- Return Manifold for CIP System
