Peristaltic pumps provide the gentlest and most sanitary method of transferring liquid, must, mash, skins and whole fruits; which is why most winemakers, brewers, and distillers consider them to be their “Go To” Pump.
A flexible silicone hose runs from the intake to the discharge connection along the inside wall of the housing and is progressively squeezed by a set of rollers as they revolve around a center axis, moving material through the hose. The alternating compression and release creates a vacuum within the hose resulting in continuous flow of material through the pump. It is entirely contained within the hose from entrance to exit, avoiding any contact with mechanical components, and continuously moved via constant vacuum pressure.

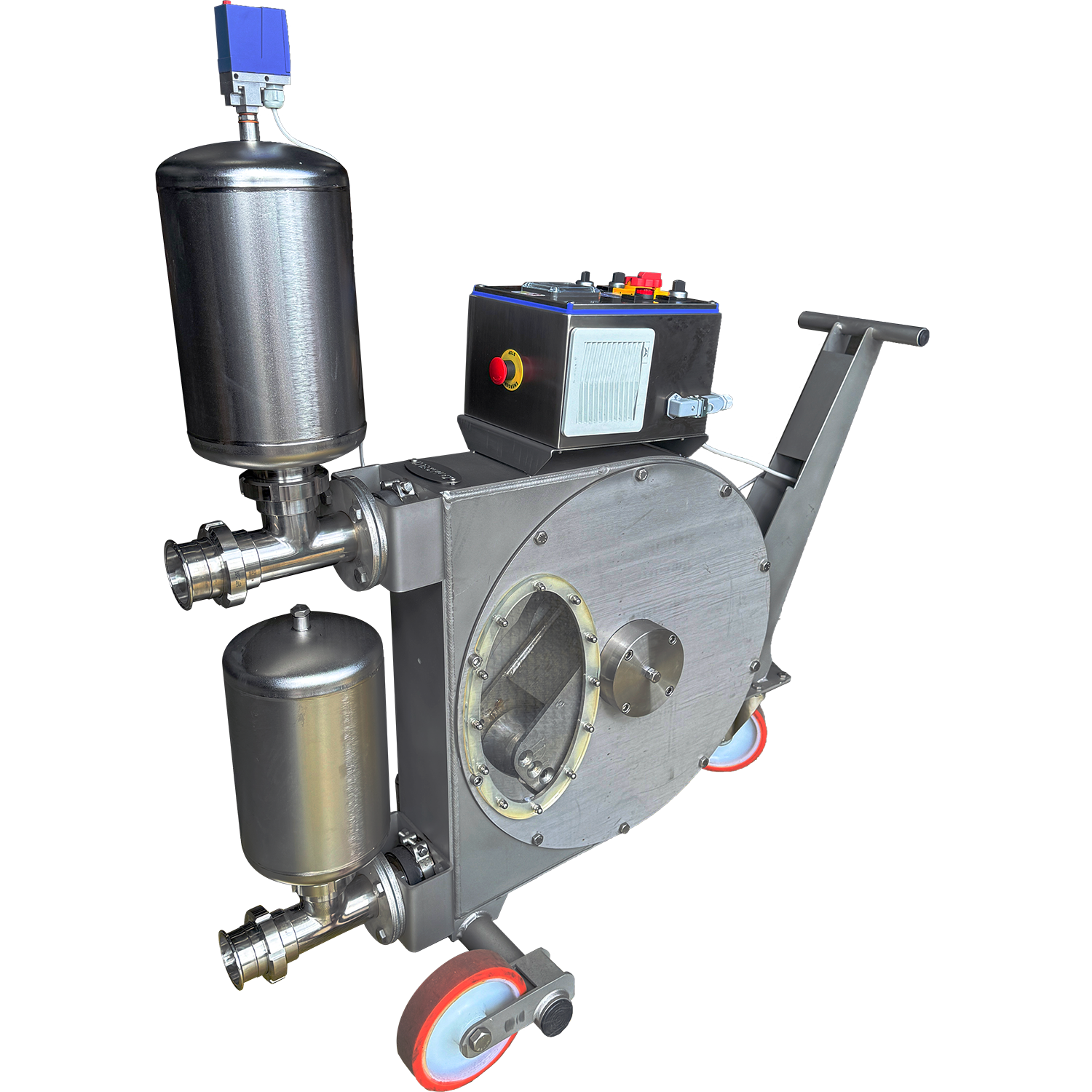

The Zambelli Zeta-PE Variable Speed Peristaltic Pumps provide the highest level of functionality and flexibility of all of their pump lines—capable of transferring everything from liquid to whole clusters of grapes without agitation.
Optional motorized Must Collection Hopper with Auger available for continuous feed of grapes, must, juice, & pomace from Destemmer and Press. Can easily be attached and removed from pump using the included Hose & Hardware.
To see how to operate the ZETA-PE Pump CLICK HERE
A flexible silicone hose runs from the intake to the discharge connection along the inside wall of the housing and is progressively squeezed by a set of rollers as they revolve around a center axis, moving material through the hose. The alternating compression and release creates a vacuum within the hose resulting in continuous flow of material through the pump. It is entirely contained within the hose from entrance to exit, avoiding any contact with mechanical components, and continuously moved via constant vacuum pressure.
The Zambelli Zeta-PE Variable Speed Peristaltic Pumps provide the highest level of functionality and flexibility of all of their pump lines—capable of transferring everything from liquid to whole clusters of grapes without agitation.
Optional motorized Must Collection Hopper with Auger available for continuous feed of grapes, must, juice, & pomace from Destemmer and Press. Can easily be attached and removed from pump using the included Hose & Hardware.
To see how to operate the ZETA-PE Pump CLICK HERE
DETAILS
- Equipped with on-board variable speed control unit
- Self-priming and can be dry run
- Reversible flow
- 6 Bar Maximum Pressure
- Pressure Compensators at intake & discharge to ensure smooth consistent flow
- 220v single-phase motor
- Tri-Clamp Intake & Discharge Connections
- Food-Grade NBR Inner Tube
- AISI 304 Stainless Steel
- Made in Italy
| ZETA-PE30 | ZETA-PE45 | ZETA-PE50 | ZETA-PE65 | |
| VOLUME Min: Max: | 0.9 gal/min (3.3 lt) 22 gal/min (83 lt) | 2.2 gal/min (8.3 lt) 35 gal/min (133 lt) | 7 gal/min (28 lt) 57 gal/min (217 lt) | 21 gal/min (80 lt) 97 gal/min (367 lt) |
| PRESSURE: | 58 PSI (4 Bar) | 72.5 PSI (5 Bar) | 87 PSI (6 Bar) | 87 PSI (6 Bar) |
| MOTOR: | 2.0 HP, 220v 1-Ph, 6.8A | 3.0 HP, 220v 1-Ph, 8.6A | 4.0 HP, 220v 1-Ph, 11.0A | 5.5 HP, 220v 1-Ph, 14.8A |
| CONNECTION: | 2.0" Tri-Clamp | 2.0" Tri-Clamp | 2.5" Tri-Clamp | 3.0" Tri-Clamp |
| INNER HOSE DIAMETER: | 1.1 in (30 mm) | 1.7 in (45 mm) | 2.0 in (50 mm) | 2.6 in (65 mm) |
| DIMENSIONS Length: Width: Height: | 30 in (760 mm) 17 in (420 mm) 36 in (920 mm) | 35 in (890 mm) 18 in (450 mm) 37 in (930 mm) | 45 in (1150 mm) 24 in (600 mm) 43 in (1100 mm) | 51 in (1300 mm) 28 in (700 mm) 51 in (1300 mm) |
| WEIGHT: | 285 lb (110 kg) | 365 lb (150 kg) | 495 lb (195 kg) | 640 lb (265 kg) |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.
