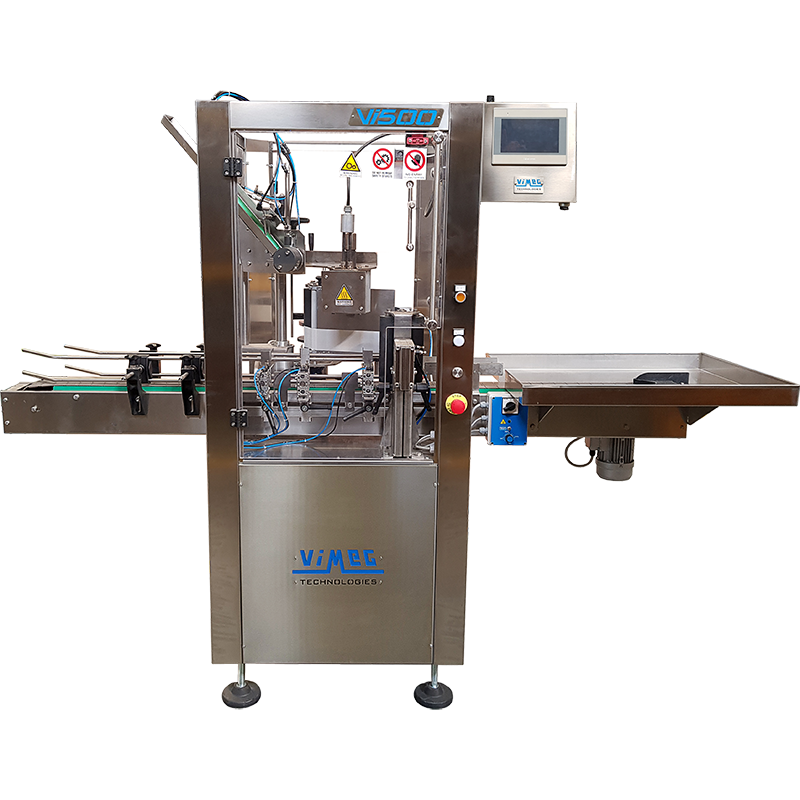

The Vi500-LAB Monoblock by ViMEG is a fully automatic labeling and shrink capsuling machine. The Vi500-LAB has a production rate of 200 - 600 bottles per hour. The self-contained unit is complete with its own conveyer belt for loading and unloading bottles, capsular, and front & back label applicator. The Vi500-LAB is outfitted with an on-board touch screen control unit for operating the machine, adjusting production speed, and performing diagnostics. The conveyor smoothly moves the bottles to the capsuling station, where the feed arm carries capsules from the hopper and places them on the bottle. A heating head then descends over the bottle neck to shrink the capsule. Once the capsule is applied, the bottles are automatically conveyed to the labelling station where front and/or back labels are applied from either a single or separate spools.
The Vi500-LAB can be set up to operate as a stand-alone unit or can be designed to run in a series after a Vi500 Filler & Capper/Corker.
To watch the Vi500-LAB Labeler and Capsular operate CLICK HERE
To find out more about ViMEG CLICK HERE
The Vi500-LAB can be set up to operate as a stand-alone unit or can be designed to run in a series after a Vi500 Filler & Capper/Corker.
To watch the Vi500-LAB Labeler and Capsular operate CLICK HERE
To find out more about ViMEG CLICK HERE
DETAILS
- Production: 200 - 600 bottles per hour
- Touch screen control unit with variable frequency drive to adjust speed of conveyor
- Capsuling head for standard Heat Shrink Caps
- Front & Back Label Applicator
- Can accommodate transparent and colored bottles from 3.2 - 18 inches in height
- Conveyor movement capable of handling conventional and unconventional bottle shape and size
- AISI 304 stainless steel construction
- Power: 2.0 HP, 220v 1 PH, 6.0A
- Dimensions: 90" L x 30" W x 76" H, 1000 lbs
- Made in Italy
Options available upon request:
WINEMAKERS DEPOT
Your Trusted Source for Winery, Cider, Distilling Equipment & Supplies
- Thermal transfer marker for stamping date, lot, batch, etc.
- Second Bobbin for applying front and back labels from separate spools
- Upgraded ultrasonic sensors for applying transparent labels
